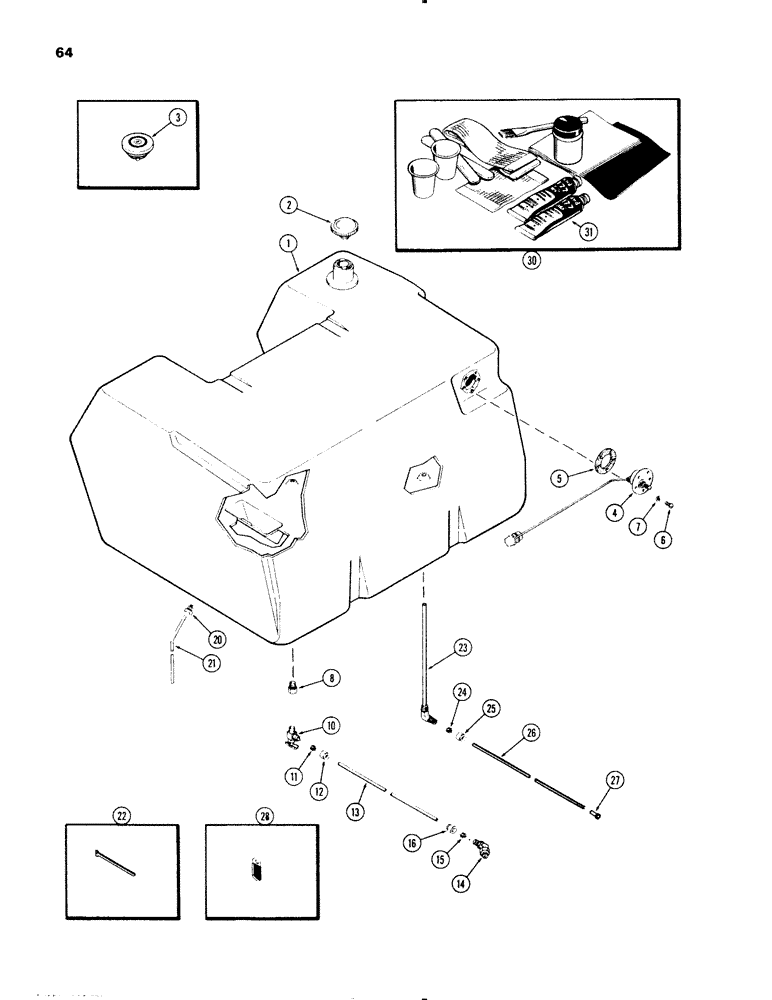

Запчасти Case IH 1270 (064) - FUEL TANK AND LINES, (451BDT) DIESEL ENGINE, NYLON MATERIAL (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A63703
TANK
- fuel (Order A141168 tank and 222-5114 elbow), See Figure: 60
1шт.
2
A32119
CAP
- fuel tank filler (w/o lock)
1шт.
3
A32120
CAP
- fuel tank filler (w/lock)
1шт.
4
A63704
TRANSMITTER
UNIT - fuel gauge sending
1шт.
5
A11822
GASKET
- sending unit
1шт.
6
173-221
SCREW,Sl Rnd Hd, #10 - 32 x 7/16"
- #10-32 x 7/16" rd. hd. mach
5шт.
7
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
5шт.
8
217-2
ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male
- extension, 1/4 x 1/4"
1шт.
10
217-278
FITTING
VALVE ASSEMBLY - outlet (1/4" P.T. x 3/8" tube (Replaces A62354), Includes Ref: 11, 12
1шт.
11
222-5186
SLEEVE,3/8" Tube
- plastic, 3/8" Tube
1шт.
12
218-5181
TEE,1/2" - 20 Male JIC x 1/2" - 20 Male JIC x 1/2" - 20 Male ORB
NUT - 3/8" tube
1шт.
13
A143009
TUBE
- tank outlet (1/4" I.D. x 108" nylon) (Replaces A62320)
1шт.
14
222-5140
FITTING,45 Degree, 17/32"-24 x 1/4" NPT
ELBOW ASSEMBLY - primer pump, 3/8" O.D. x 1/4" P.T., 45 deg., Includes Ref: 15, 16
1шт.
15
222-5186
SLEEVE,3/8" Tube
- plastic, 3/8" Tube
1шт.
16
222-5181
NUT,9/16"-24
NUT - 3/8" tube
1шт.
20
A23656
COCK, DRAIN
VALVE - drain cock (1/4" P.T.)
1шт.
21
A22988
HOSE,0.25" ID x 15.00", SAE SC716 CS
- Water trap drain 0.25" ID x 15.00", SAE SC716 CS
1шт.
22
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP - tube (Replaces L11541)
1шт.
23
A62274
FITTING
PIPE ASSEMBLY - fuel tank return port, Includes Ref: 24, 25
1шт.
24
222-5185
SLEEVE,1/4" Tube
- 1/4" Tube
1шт.
25
222-5180
TUBE NUT,7/16"-24
for 1/4" tube 7/16"-24
1шт.
26
A67322
TUBE
- injector to return pipe (3/16" I.D. x 102" nylon)
1шт.
27
A141160
INSERT
- return tube to nozzle outlet
1шт.
28
A22883
CLIP
-, Serial Range: tube-firewall
1шт.
30
A44265
KIT
- repair, nylon tank (See Note) (Also order A44266)
1шт.
31
A44266
KIT
ADHESIVE - repair kit, tank
1шт.
Выбрано товаров: 26
