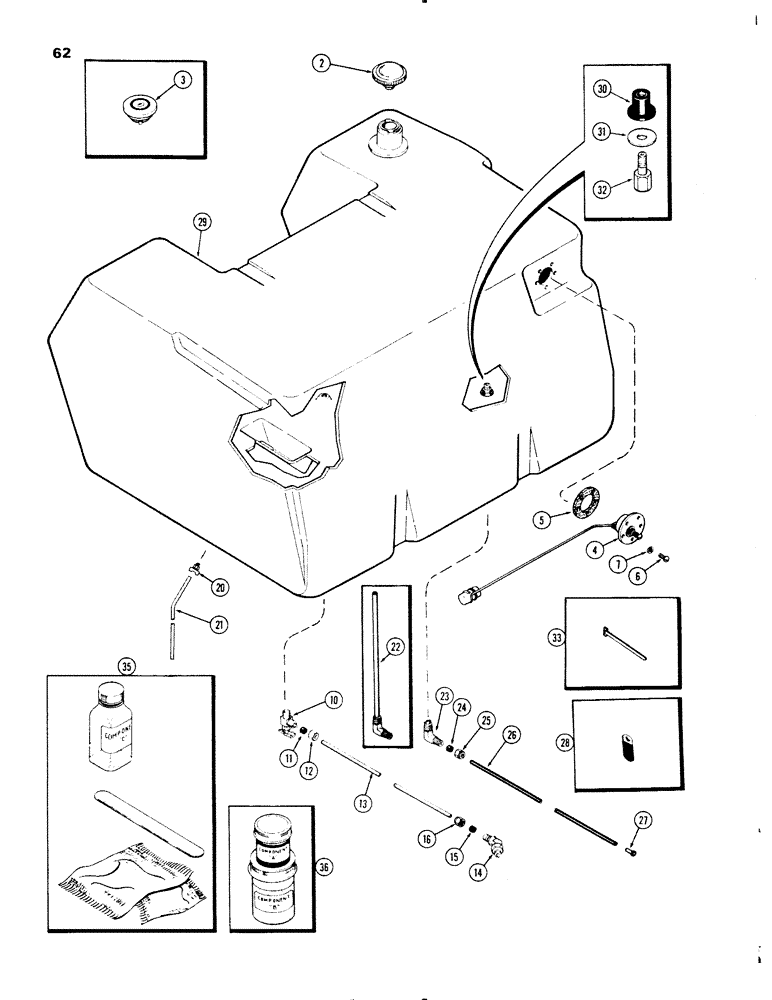

Запчасти Case IH 1270 (062) - FUEL TANK AND LINES, (451BDT) DIESEL ENGINE, POLYETHLENE MATERIAL, USED PRIOR TO P.I.N. 8815047 (03) - FUEL SYSTEM

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A63704

TRANSMITTER

UNIT - fuel gauge sending

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- #10-32 x 1" rd. hd. mach

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

10

217-278

FITTING

VALVE ASSEMBLY - fuel outlet & shut-off, Includes Ref: 11, 12

1шт.

11

222-5186

SLEEVE,3/8" Tube

- plastic (for ) 3/8" Tube

1шт.

12

222-5181

NUT,9/16"-24

NUT - (for 3/8" tube)

1шт.

13

A143009

TUBE

- tank outlet (1/4" I.D. x 108" nylon)

1шт.

14

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSEMBLY - 45deg., to hand primer pump, Includes Ref: 15, 16

1шт.

15

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

20

A23656

COCK, DRAIN

VALVE - drain cock

1шт.

21

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

A65893

PIPE

ASSEMBLY - return (Includes Ref. 24 & 25) (Order 222-5114)

1шт.

23

222-5114

ELBOW,90 Degree, 7/16"-24 x 1/4" NPTF

- return (1/4" tube x 1/4" P.T.) (Replaces A65893), Includes Ref: 24, 25

1шт.

24

222-5185

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

25

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

26

A67322

TUBE

- injector to return port, 3/16" I.D. x 102" nylon

1шт.

27

A141160

INSERT

- return tube to nozzle outlet

1шт.

28

A22883

CLIP

- tube (Outlet & return fuel line to L.H. rear firewall bolt)

1шт.

29

A65889

TANK

ASSEMBLY - fuel (Order A141168), See Figure: 60, Includes Ref: 30-32

1шт.

30

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud (Replaces A65891)

3шт.

31

A65892

WASHER

- stud

3шт.

32

A65890

STUD,3/8" - 16 x 1/4" NPT

- fuel tank

3шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube (See Note) (Replaces L11541)

3шт.

35

A44635

KIT

- repair, polyethlene tank (See Note) (Also order A44636)

1шт.

36

A44636

KIT

- sealant, tank repair

1шт.
