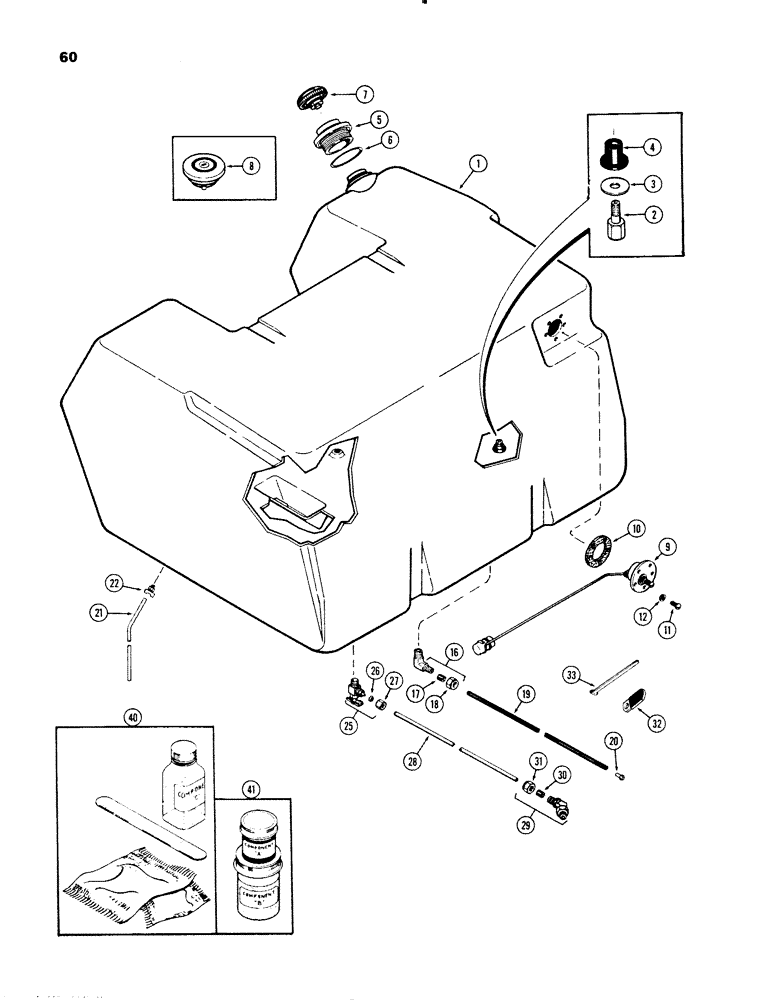

Запчасти Case IH 1270 (060) - FUEL TANK AND LINES, (451BDT) DIESEL ENGINE, POLYETHLENE MATERIAL, FIRST USED P.I.N. 8815047 (03) - FUEL SYSTEM

1

A141168

TANK

ASSEMBLY - fuel, Includes Ref: 2-6

1шт.

2

A65890

STUD,3/8" - 16 x 1/4" NPT

- mounting

3шт.

3

A65892

WASHER

- stud

3шт.

4

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

3шт.

5

A143074

COLLAR

NECK - filler

1шт.

6

A145752

O-RING,2.85" ID x 0.21"

- neck seal (2-27/32 x 3-1/32 x 7/32)

1шт.

7

A32119

CAP

- filler (See Ref. 8)

1шт.

8

A32120

CAP

- filler, locking type

1шт.

9

A63704

TRANSMITTER

UNIT - sending, fuel gauge

1шт.

10

A11822

GASKET

- sending, Serial Range: unit-tank

1шт.

11

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- #10-32 x 1" rd. hd

5шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

16

222-5114

ELBOW,90 Degree, 7/16"-24 x 1/4" NPTF

- return line, 1/4" tube x 1/4" P.T. (Replaces A65893), Includes Ref: 17, 18

1шт.

17

222-5185

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

18

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

19

A67322

TUBE

- return, injector to tank (3/16" I.D. x 102" nylon)

1шт.

20

A141160

INSERT

- tube to injector outlet

1шт.

21

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

A23656

COCK, DRAIN

VALVE - drain

1шт.

25

217-278

FITTING

VALVE ASSEMBLY - outlet and shut-off, 3/8" tube x 1/4" P.T., Includes Ref: 26, 27

1шт.

26

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

27

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

28

A143009

TUBE

- tank outlet 93/8" O.D. x 108")

1шт.

29

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSEMBLY - tube to primer pump, 3/8" tube x 9/16"-24 (45deg.), Includes Ref: 30, 31

1шт.

30

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

31

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

32

A22883

CLIP

-, Serial Range: tube-firewall

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube, nylon (Replaces L11541)

3шт.

40

A44635

KIT

- tank repair (Also order A44636), fuel

1шт.

41

A44636

KIT

- sealant, tank repair, fuel

1шт.
