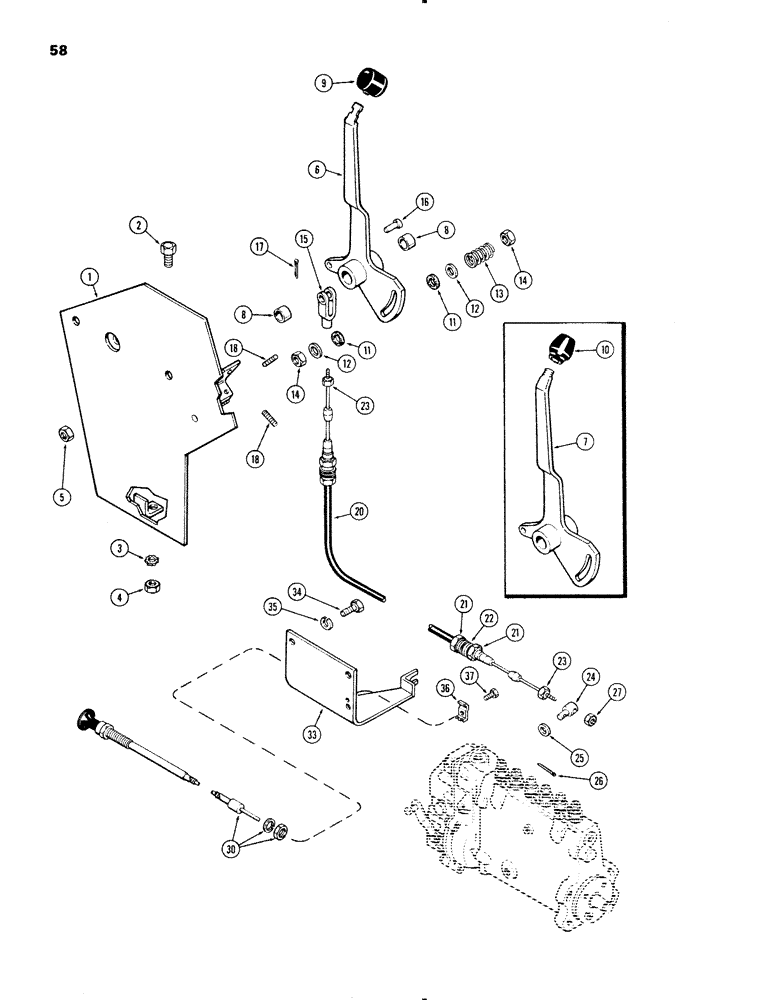

Запчасти Case IH 1270 (058) - THROTTLE CONTROLS, (451BDT) DIESEL ENGINE (03) - FUEL SYSTEM

1

A65587

PLATE

ASSEMBLY - console front shaft support

1шт.

2

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

3

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER -Shakeproof, 3/8" internal/external

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

5

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" Gripco self-locking jam

3шт.

6

A137812

LEVER

ASSEMBLY - throttle (Replaces A63010)

1шт.

7

A63010

LEVER

ASSEMBLY - throttle (with threaded top) (Order Ref 6 and 9), Includes Ref: 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- (5/8 x 3/4 x 1/2" bronze)

2шт.

9

A137806

KNOB

- lever (rubber)

1шт.

10

A65699

KNOB

- lever (plastic) (Order A137806)

1шт.

11

A61069

DISC

- friction

2шт.

12

195-2172

WASHER,7/16" x 1 1/4" x .083"

- flat, special

2шт.

13

A65583

SPRING

- friction disc

1шт.

14

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC Gripco self-locking, jam

2шт.

15

A63015

YOKE

- throttle cable

1шт.

16

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

17

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

18

A141874

SET SCREW,1/4" - 20 x 1 1/4"

- 1/4 x 1-1/4" NC slotted set

2шт.

20

A63013

CABLE

ASSEMBLY - hand throttle, Includes Ref: 21-23

1шт.

21

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" NF hex, jam

4шт.

22

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - Shakeproof, 7/16" internal

4шт.

23

129-27

NUT,Hex, #10 - 32

- #10 NF hex, jam

2шт.

24

A63014

PIVOT

- control cable

1шт.

25

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

26

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

27

193-1000

NUT,Keps, w/LW,#10-32

- #10 NF hex Keps

1шт.

30

A64850

LEVER

CONTROL - flexible stop

1шт.

33

A63960

BRACKET

SUPPORT - stop cable mounting

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

B51765

CLIP

- stop cable

1шт.

37

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- (#8 x 1/2" NC round head machine)

1шт.
