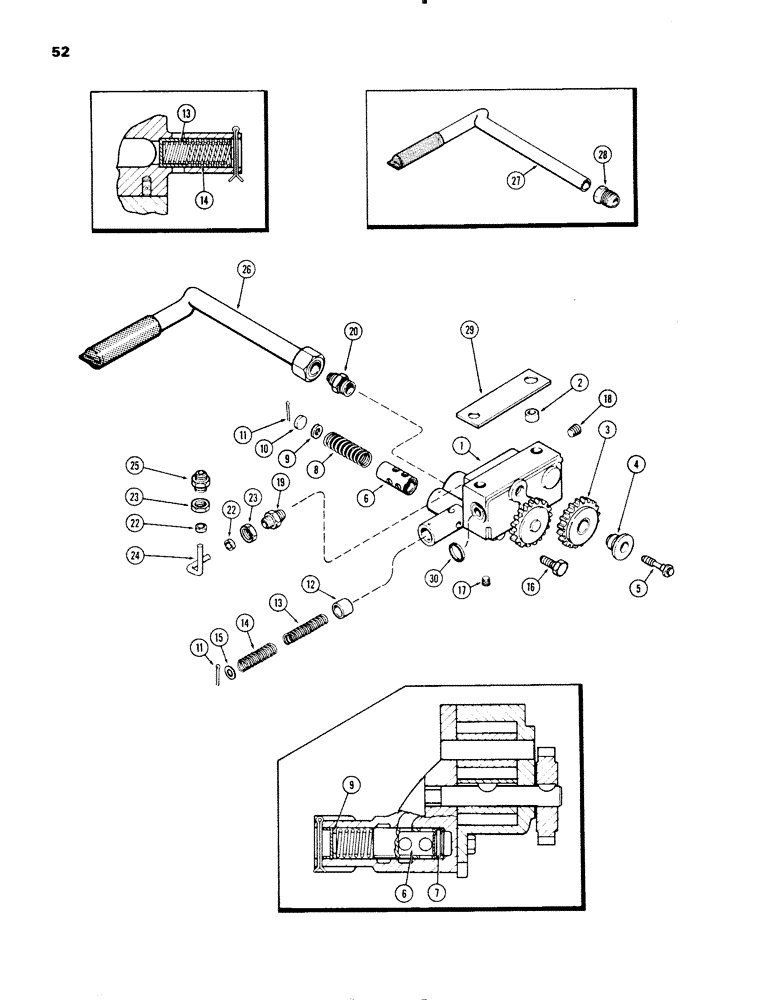

Запчасти Case IH 1270 (052) - OIL PUMP, (451BDT) DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A152998
PUMP
ASSEMBLY - lube oil (Replaces A66002 and A140444), Includes Ref: 2-19
1шт.
2
A58915
SLEEVE
- oil pump body
1шт.
3
NSS
NOT SOLD SEPARAT
GEAR - idler
1шт.
4
A63944
SHAFT
- idler gear
1шт.
5
A63945
12 PT SCREW
BOLT - idler gear to pump body
1шт.
6
A75286
VALVE
ASSEMBLY - oil pressure relief, Includes Ref: 7
1шт.
7
138-2063
PIN,3/32" x 1", Coiled
1шт.
8
A63949
SPRING
- oil pump valve (2-7/8" free length)
1шт.
9
A57470
WASHER
- 13/32 x 11/16" x 16 gauge
1шт.
10
41-1016
PLUG,Cup, 1"
- cup (1")
1шт.
11
132-34
COTTER PIN,3/32" x 1 3/4"
Pin, Split (Cotter), 3/32" x 1 3/4"
2шт.
12
A76152
VALVE
- safety, pressure relief
1шт.
13
A76154
SPRING
- inner, pressure relief safety valve (3-7/64" free length)
1шт.
14
A76153
SPRING
- outer, pressure relief safety valve (2-7/16" free length)
1шт.
15
195-25
WASHER,3/8"
- ( flat) 3/8"
1шт.
16
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Cover to body Hex, 5/16"-18 x 1", G5, Full Thd
4шт.
17
221-850
PLUG,Hex Soc, 1/16"-27
- pipe (1/16" square socket head), in cover
3шт.
18
221-843
PLUG,Hex Soc, 3/8"-18
- pipe (3/8" hex. socket head)
1шт.
19
222-4022
HYD CONNECTOR,1/2"-24 x 1/8" NPTF
CONNECTOR - flex (1/4" tube x 1/8" P.T.) (in cover)
1шт.
20
A142004
CONNECTOR, ELEC
CONNECTOR - suction tube
1шт.
22
222-153
SLEEVE,1/4" Tube
2шт.
23
87017024
TUBE NUT,1/2"-24
NUT - flex tube fitting
2шт.
24
A75290
TUBE
- oil pump gallery sensing
1шт.
25
222-4022
HYD CONNECTOR,1/2"-24 x 1/8" NPTF
CONNECTOR - flex (1/4" tube x 1/8" P.T.), in cyl. block
1шт.
26
A142449
TUBE
ASSEMBLY - suction (Incl. screen)
1шт.
27
A66174
TUBE
ASSEMBLY - suction (Incl. screen) (Order Ref. 20 & 26)
1шт.
28
222-510
TUBE NUT,1 1/4"-18
NUT - tube (1" inverted flare) (Use w/A66174 tube)
1шт.
29
A58859
SHIM,.005" Thk
Oil pump .005" Thk
1шт.
30
A64434
O-RING,0.93" ID x 1.142" x 0.106"
- pump to block (15/16 x 1-5/32 x 7/64")
1шт.
Выбрано товаров: 29
