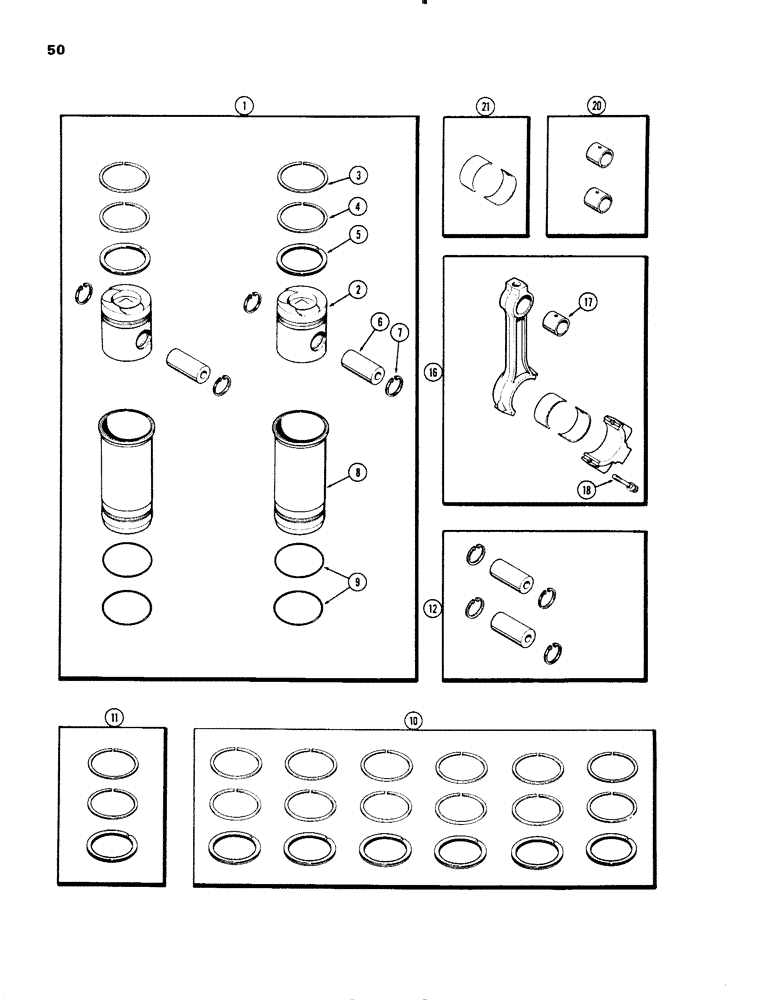

Запчасти Case IH 1270 (050) - PISTON ASSEMBLY, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A151408

PACKAGE

PISTON & SLEEVE KIT - (Set of 2)(Replaces A44048), Includes Ref: 2-9

3шт.

2

A65040

PISTON

PISTON - cylinder, 4-3/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove)(Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove)(Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Bottom groove)(Order Ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

4шт.

8

A142367

SLEEVE

SLEEVE - piston (cylinder liner)(Replaces A59093)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

O-RING - piston sleeve

4шт.

10

A44049

RING, PISTON

RING KIT - re-ring (Set of 6), Includes Ref: 11

1шт.

11

A44050

RING, PISTON

RING KIT - re-ring (Set of 1)

6шт.

12

A43095

PIN

PIN KIT - w/retaining rings (Set of 2)

3шт.

16

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes Ref: 17, 18

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 20), connecting rod

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - 1/2 x 2-5/16" N.F. 12 pt. hd, connecting rod

2шт.

20

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin, connecting rod

6шт.

21

A43173

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (Std.)

6шт.

21

A43174

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (-.002")

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing (-.010")

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT ASSEMBLY - connecting rod bearing (-.020")

6шт.

21

A43177

BEARING LINER

INSERT ASSEMBLY - connecting rod bearing (-.030)

6шт.
