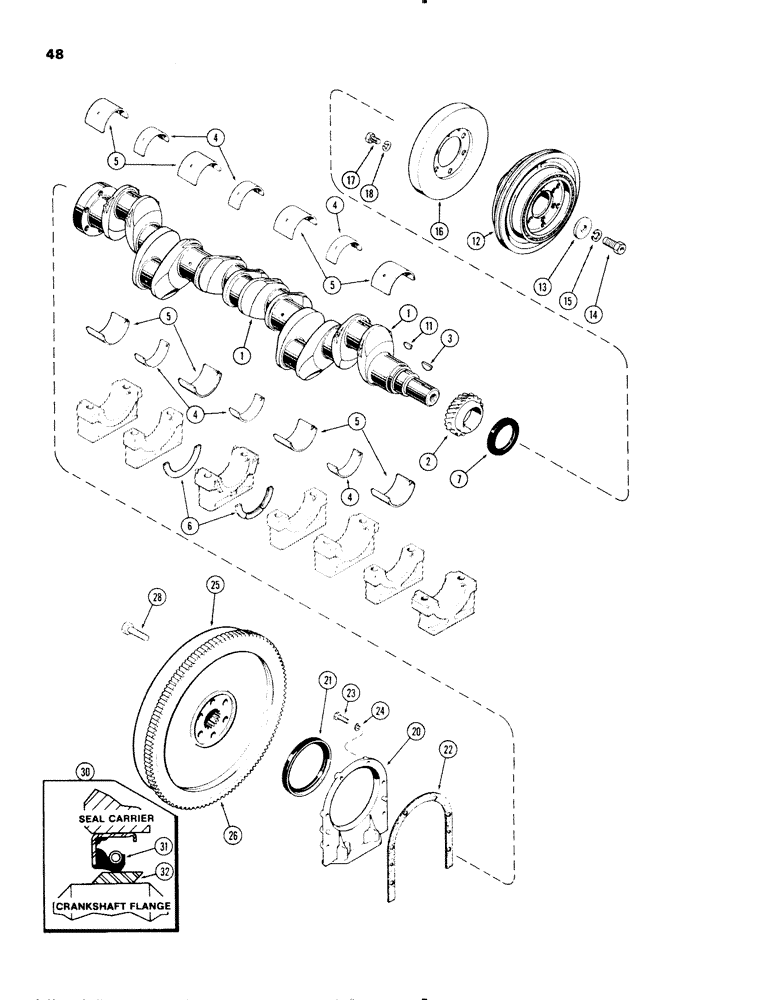

Запчасти Case IH 1270 (048) - CRANKSHAFT AND FLYWHEEL, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A136106

CRANKSHAFT

ASSEMBLY - engine (Replaces A66436), Includes Ref: 2, 3

1шт.

2

A66404

GEAR

- crankshaft front

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A43158

BEARING LINER

LINER - main bearing, narrow (Std.)

3шт.

4

A43159

BEARING LINER

LINER - main bearing, narrow (-.002")

3шт.

4

A43160

BEARING LINER

LINER - main bearing, narrow (-.010")

3шт.

4

A43161

BEARING SET

LINER - main bearing, narrow (-.020")

3шт.

4

A43162

BEARING LINER

LINER - main bearing, narrow (-.030")

3шт.

5

A43163

BEARING LINER

LINER - main bearing, wide (Std.)

4шт.

5

A43164

BEARING LINER

LINER - main bearing, wide (-.002")

4шт.

5

A43165

BEARING LINER

LINER - main bearing, wide (-.010")

4шт.

5

A43166

BEARING LINER

LINER - main bearing, wide (-.020")

4шт.

5

A43167

BEARING LINER

LINER - main bearing, wide (-.030")

4шт.

6

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft (Std.)(Bronze)(.185)

2шт.

6

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (oversize)(.191")

1шт.

7

A62049

OIL SEAL

- crankshaft front (2-5/8 x 3-5/8 x 15/32")

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

12

A66446

PULLEY

- fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

A58900

DAMPER

- crankshaft pulley

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

6шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- rear (4-3/4 x 5-3/4 x 1/2")(See Ref. 30)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A66611

FLYWHEEL

ASSEMBLY, Includes Ref: 26

1шт.

26

A58778

GEAR

- ring, 139 teeth

1шт.

28

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- (5/8 x 1-3/4" N.F. hex.)

6шт.

30

A43194

KIT

- wear, crankshaft oil seal, Includes Ref: 31, 32

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.
