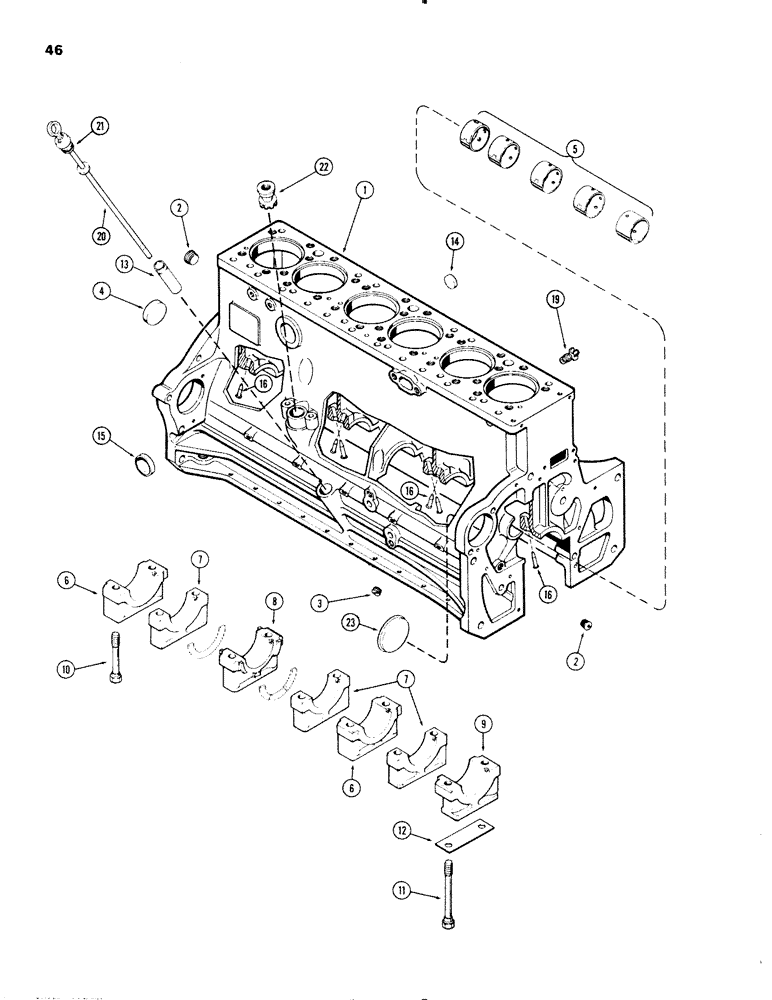

Запчасти Case IH 1270 (046) - CYLINDER BLOCK ASSEMBLY, (451 BDT) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2555990 (02) - ENGINE

A44046

ENGINE ASSEMBLY

BLOCK ASSEMBLY - short (Incl. stripped block, pistons, conn. rods & brgs. crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Order A44066 and 30-A76638 bolts), Includes Ref: 1-16

1шт.

1

A44047

BLOCK

ASSEMBLY - stripped (Casting #A58514) (Order A44067 and 30-A76638 bolts), Includes Ref: 2-16

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T. hex. sckt. hd

3шт.

3

221-41

PLUG

- 1/8" P.T. sltd. hdless (oil gallery)

6шт.

4

A24361

PLUG

- 2-3/8" cup, camshaft hole, rear

1шт.

5

A23544

BUSHING

KIT - camshaft, See Figure: 42

1шт.

6

A58783

BEARING CAP

CAP - main bearing, wide

2шт.

7

A58784

BEARING CAP

CAP - main bearing, narrow

3шт.

8

A58785

BEARING CAP

CAP - main bearing, thrust

1шт.

9

A66447

CAP

- main bearing, front

1шт.

10

A58566

STEP BOLT

BOLT - bearing cap (5/8 xc 4-1/2" N.C.)

12шт.

11

A58567

STEP BOLT

BOLT - bearing cap to oil pump (5/8 x 6" N.C.)

2шт.

12

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

13

A34540

TUBE

- oil filler & dipstick

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup, water gallery

3шт.

15

A58569

PLUG,Cup, 2", Stainless

- 2" cup (block heater hose, R.H. side)

1шт.

16

A63903

NOZZLE CAP

NOZZLE - spray, piston oil cooling

6шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A66123

DIPSTICK

- oil level (Order A138329), See Figure: 44, Includes Ref: 21

1шт.

21

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- (3/4 x 1 x 1/8")

2шт.

22

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

23

41-1052

PLUG,Cup, 3 1/4"

- 3-1/4" cup (aux. pump drive opening)

1шт.
