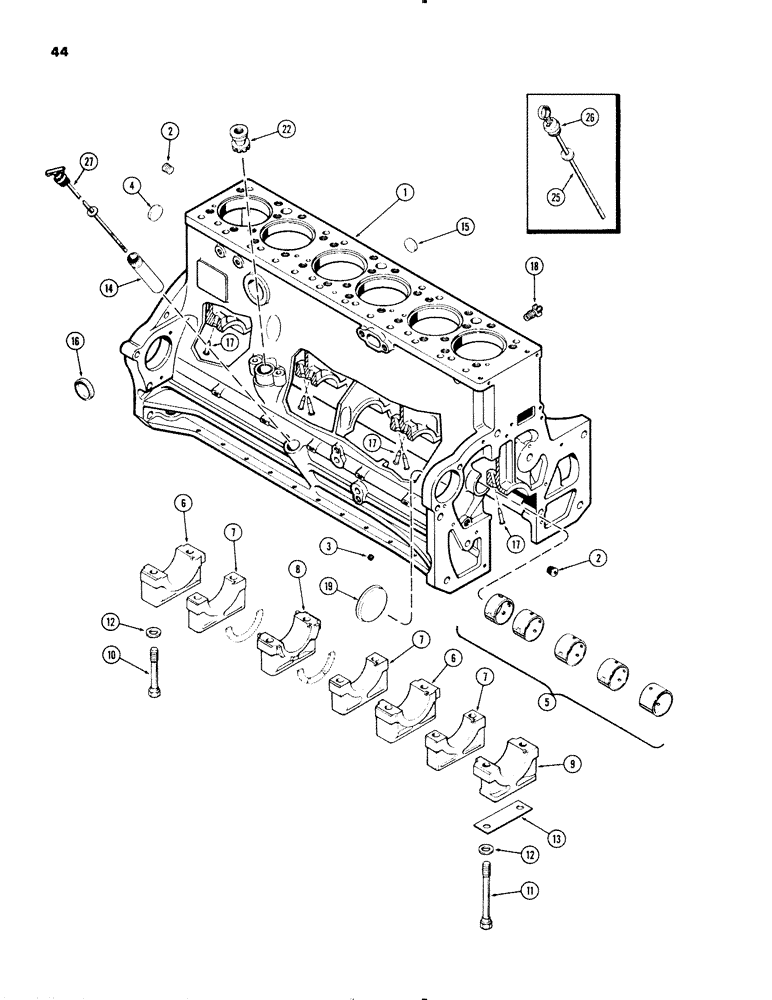

Запчасти Case IH 1270 (044) - CYLINDER BLOCK ASSEMBLY, (451 BDT) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2555990 (02) - ENGINE

A44066

ENGINE ASSEMBLY

BLOCK ASSEMBLY - short (Incl. stripped block, pistons, conn. rods & brgs., crankshaft & brgs., camshaft, timing gears & push rod lifter), Includes Ref: 1-22

1шт.

1

A44067

BLOCK

ASSEMBLY - stripped (Casting #A66524), Includes Ref: 2-19

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- 3/4" P.T. hex. socket hd

4шт.

3

221-1849

PLUG

- 1/8" P.T. hex. sckt. hd. (oil gallery)

6шт.

4

A24361

PLUG

- rear (2-3/8" dia. cut type)

1шт.

5

A23544

BUSHING

KIT - camshaft, See Figure: 42

1шт.

6

A58783

BEARING CAP

CAP - main bearing wide

1шт.

7

A58784

BEARING CAP

CAP - main bearing, narrow

3шт.

8

A58785

BEARING CAP

CAP - main bearing, thrust

1шт.

9

A66447

CAP

- main bearing, front

1шт.

10

A66948

STEP BOLT

BOLT - bearing cap (5/8 x 5")

12шт.

11

A66949

STEP BOLT

BOLT - oil pump & brg. cap (5/8 x 7-1/4")

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cap bolt (21/32 x 1 x 7/64")

14шт.

13

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

14

A34540

TUBE

- oil filler & dipstick

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery (1-3/8" dia. cup type)

3шт.

16

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" dia. cup type)

1шт.

17

A63903

NOZZLE CAP

NOZZLE - spray, piston oil cooling

6шт.

18

A23656

COCK, DRAIN

VALVE - water drain

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

- drive opening (3-1/4" dia. cup type)

1шт.

22

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

25

A66123

DIPSTICK

- oil level (push type) (See A138329), Includes Ref: 26

1шт.

26

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- (3/4 x 1 x 1/8")

2шт.

27

A138329

DIPSTICK

- (screw type)

1шт.
