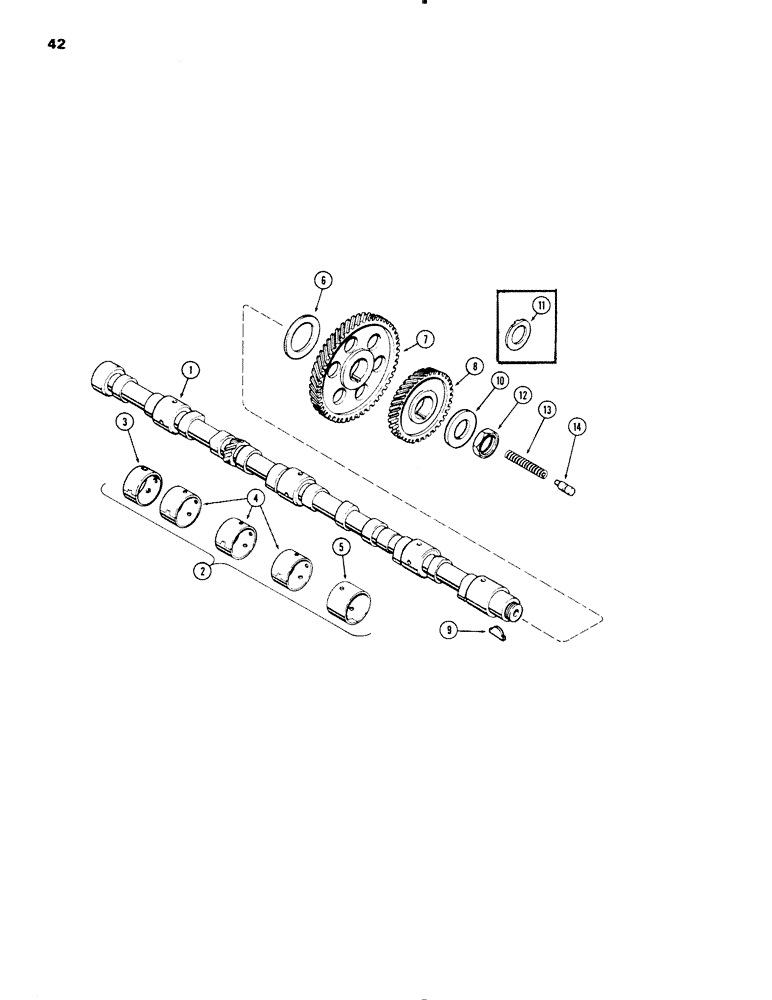

Запчасти Case IH 1270 (042) - CAMSHAFT, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A66124

CAMSHAFT

- engine

1шт.

2

A23544

BUSHING

KIT - camshaft, Includes Ref: 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

6

A21017

WASHER

- camshaft thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - 5/16 x 1-5/16" Hi-pro

1шт.

10

A31038

THRUST WASHER

- thrust, camshaft (Replaces A58594)

1шт.

11

A58594

LOCK WASHER

- lock, camshaft nut (Order A31038)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
