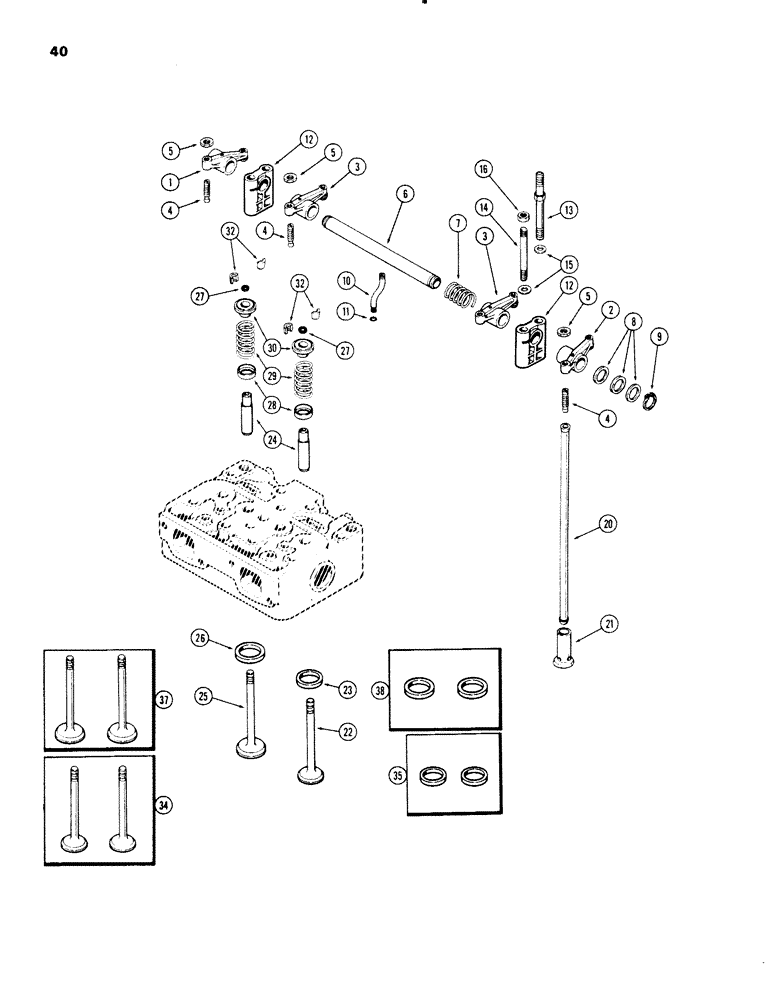

Запчасти Case IH 1270 (040) - VALVE MECHANISM, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust (1, 3 & 5 cyl.)(Replaces A58655), Includes Ref: 4, 5

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust (3, 4 & 6 cyl.)(Replaces A58656), Includes Ref: 4, 5

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve (Replaces A58654), Includes Ref: 4, 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

1шт.

6

A57532

SHAFT

ASSEMBLY - rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube (3/16 x 5/163 x 1/16")

3шт.

12

A61128

BRACKET

BRAKCET - rocker arm shaft

6шт.

13

A67121

STUD

- cover & rocker arm (7/16" N.C. x 6-1/16")

6шт.

14

A58659

STUD

- 7/16" N.C. x 4-5/16"

6шт.

15

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

12шт.

16

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

6шт.

20

A141841

ROD

ASSEMBLY - push (Replaces A66439)

12шт.

21

A20865

TAPPET

LIFTER - push rod

12шт.

21

A21857

TAPPET

LIFTER - push rod (.010" oversize

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 34)

6шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order Ref. 35)

12шт.

24

A41783

GUIDE

- intake & exhaust valves, See Ref: 36

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 37)

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order Ref. 38)

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- intake & exhaust valve springs

12шт.

29

A66444

SPRING

- intake & exhaust valves

12шт.

30

A66336

ROTATOR

ROTO CAP - intake & exhaust valve

12шт.

32

A27872

LOCK

- valve spring

24шт.

34

A44043

VALVE

KIT - exhaust (Set of 2)

3шт.

35

A44010

INSERT

KIT - exhaust valve (Set of 2)

3шт.

37

A41753

VALVE

KIT - intake (Set of 2)(Replaces A42129)

3шт.

38

A42761

INSERT

KIT - intake valve (Set of 2)

3шт.
