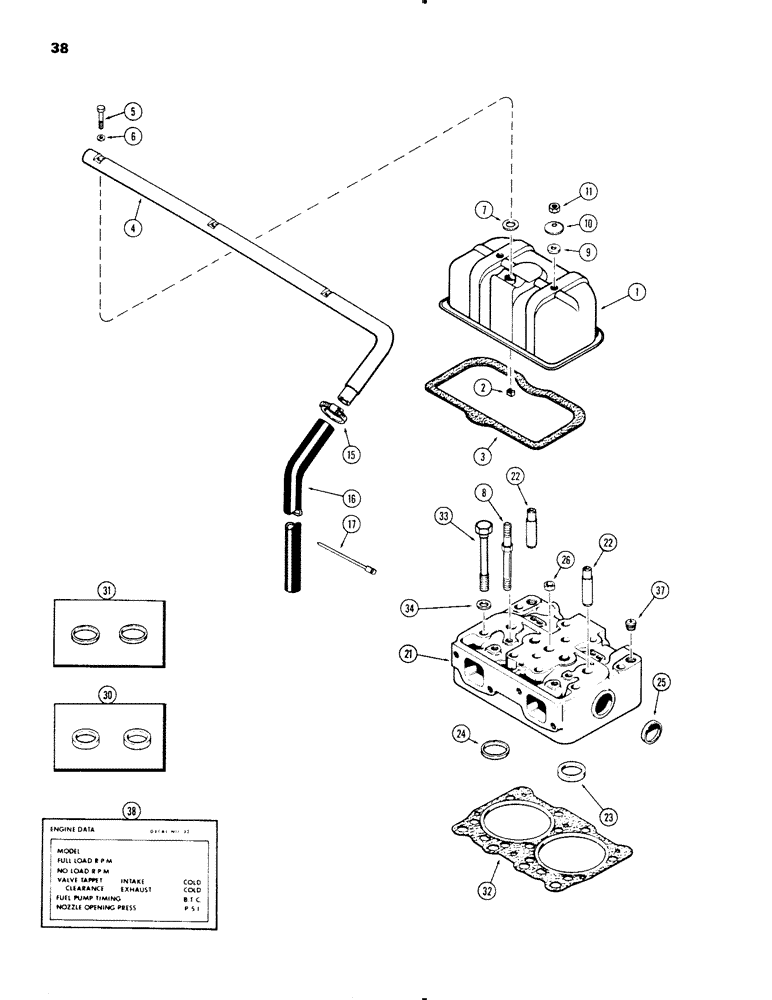

Запчасти Case IH 1270 (038) - CYLINDER HEAD AND COVER, (451 BDT) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

ASSEMBLY - cylinder head, Includes Ref: 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A66640

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

3шт.

6

A34133

GASKET

- breather tube screw (9/32 x 1/2 x 3/64")

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- tube to cover (11/16 x 1-1/4 x 1/4")

3шт.

8

A67121

STUD

- cover & rocker arm (7/16" N.C. x 6")

6шт.

9

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8")

6шт.

10

A23683

WASHER

- cover stud, dished

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

6шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - breather hose (9/16 to 1-1/16")

1шт.

16

A66132

HOSE

- breather

1шт.

17

G18331

STRAP

- breather hose (Replaces L11541)

1шт.

21

A66441

HEAD

ASSEMBLY - cylinder (Casting No. A61252), Includes Ref: 22-26

3шт.

22

A41783

GUIDE

S - intake & exhaust valves

12шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order Ref.30)

2шт.

24

NSS

NOT SOLD SEPARAT

INSERT - intake valve (Order Ref. 31)

2шт.

25

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup

2шт.

26

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup

3шт.

30

A44010

INSERT

KIT - exhaust valve (Set of 2)

3шт.

31

A42761

INSERT

KIT - intake valve (Set of 2)

3шт.

32

A142482

GASKET

- cylinder head (Replaces A64105 and A138121)

1шт.

33

A62732

STEP BOLT

BOLT - (5/8 x 5-3/8" N.C. hex.)

30шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T. hex. sckt. hd

5шт.

38

321-3015

DECAL

- engine data (Replaces 321-2615)

1шт.
