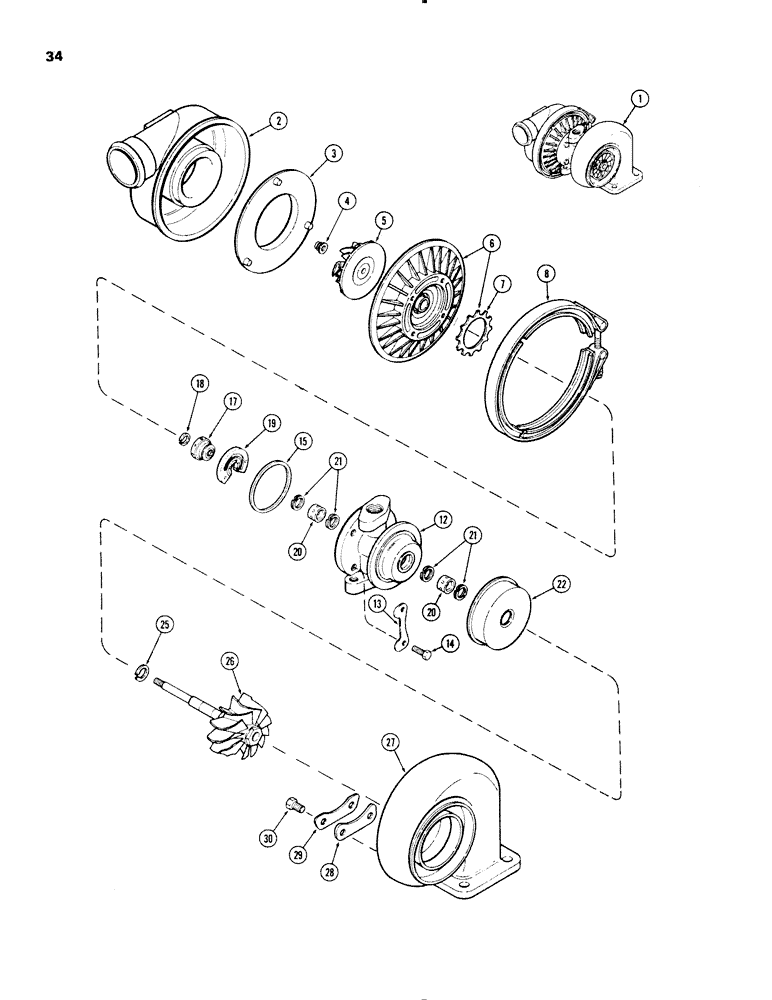

Запчасти Case IH 1270 (034) - TURBO-CHARGER ASSEMBLY, (451 BDT) DIESEL ENGINE, MODEL T04 WITH BACK PLATE BAND (02) - ENGINE

A43360

TURBOCHARGER

TURBO-CHARGER - return number (See Note)

1шт.

1

A43361

REMAN-TURBOCHARGER

TURBO-CHARGER - rebuilt (Order A44052), See Figure: 32, Includes Ref: 2-30

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor wheel (Order Ref. 2-9), See Figure: 32

1шт.

3

NSS

NOT SOLD SEPARAT

DIFFUSER - (Order Ref. 2-9), See Figure: 32

1шт.

4

A44831

NUT

- lock, compressor wheel (Order A45090)

1шт.

5

NSS

NOT SOLD SEPARAT

WHEEL - (Order Ref. 2-9), See Figure: 32

1шт.

6

A44844

PLATE

ASSEMBLY - back, compressor, Includes Ref: 7

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

8

A44822

CLAMP

- band, back, Serial Range: plate-housing

1шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

- lock, center housing bolt

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

A44833

RING

- seal, center housing

1шт.

17

A44830

COLLAR

- thrust

1шт.

18

A44828

RING

- piston (1/2" O.D.)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

- center housing (Std.)

2шт.

20

A44849

BUSHING

BEARING - center housing (.005" undersize)

2шт.

20

A44850

BUSHING

BEARING - center housing (.010" undersize)

2шт.

21

A44827

RING

- snap, bearing retaining

4шт.

22

A44834

GUARD

SHROUD - wheel

1шт.

25

A44829

RING

- piston (23/32" O.D.)

1шт.

26

A44841

WHEEL

ASSEMBLY - turbine

1шт.

27

A44846

HOUSING

- turbine

1шт.

28

A44823

CLAMP

- turbine housing

3шт.

29

A44824

PLATE

- lock, turbine housing bolt

3шт.

30

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- 5/16 x 1/2" N.C. hex

6шт.
