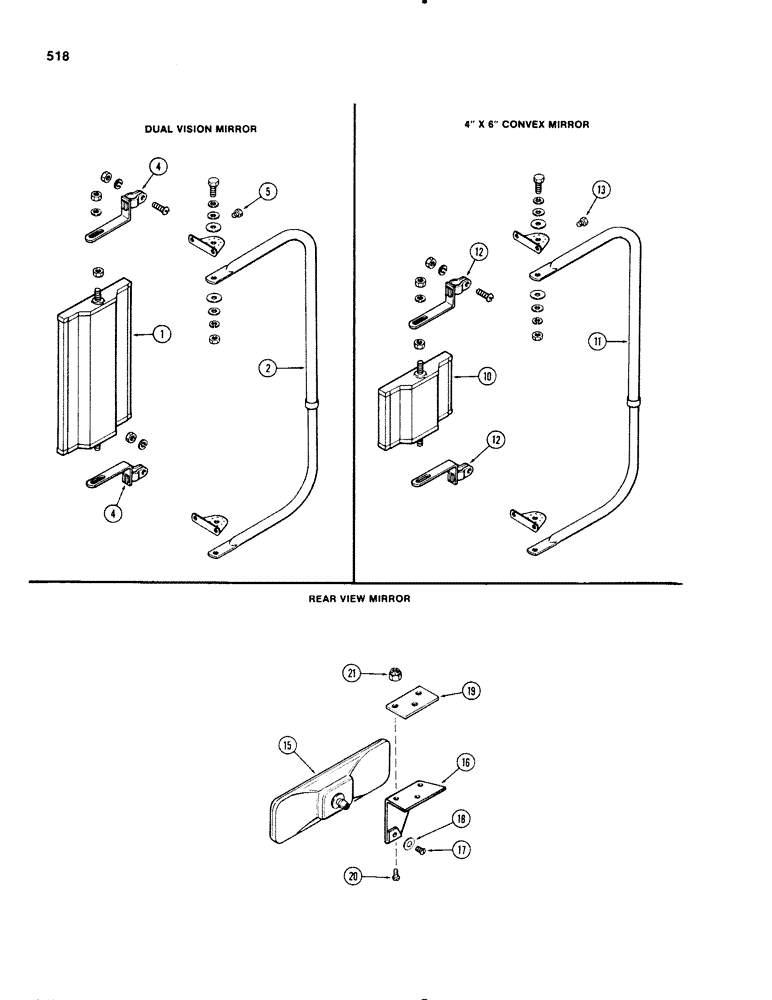

Запчасти Case IH 1270 (518) - CAB MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A61895
ATTACHMENT
- mirror (Mach. Item), Includes Ref: 1, 2,4
1шт.
NSS
NOT SOLD SEPARAT
MIRROR ASSEMBLY - dual vision (Order A61895)
1шт.
1
A42765
MIRROR
- dual vision
1шт.
2
A42764
BRACKET
- mirror swing away
1шт.
4
A42767
ADAPTER
- mirror bracket (Replaces A42766)
2шт.
5
187-1009
BOLT
- 1/4 x 3/8" hex., Shakeproof
4шт.
A61897
KIT
ATTACHMENT - mirror (Mach. Item)
1шт.
NSS
NOT SOLD SEPARAT
MIRROR ASSEMBLY - 4 x 6" convex (Order A61897), Includes Ref: 10-12
1шт.
10
A42768
MIRROR
- 4 x 6" convex
1шт.
11
A42764
BRACKET
- mirror swing away, 4" x 6" convex
1шт.
12
A42767
ADAPTER
- mirror bracket, 4" x 6" convex
2шт.
13
187-1009
BOLT
- 1/4 x 3/4" hex., Shakeproof, 4" x 6" convex
4шт.
F89785
MIRROR
ATTACHMENT - inside rear view mirror (Part of cab), Includes Ref: 15-21
1шт.
15
F89695
MIRROR
- rear view, inside
1шт.
16
F63369
BRACKET
- mounting, inside rear view
1шт.
17
163-15
SCREW,Hex, #10 - 24 x 5/8"
- #10-24 x 9/16" hex. hd, inside rear view
1шт.
18
195-511
WASHER,#10
- 13/64 x 15/32 x 1/16", inside rear view
1шт.
19
F63381
PLATE
- back-up, mirror, inside rear view
1шт.
20
173-212
SCREW,Sl Rnd Hd, #10 - 24 x 1/2"
- #10-24 x 1/2" rd. hd. machine, inside rear view
3шт.
21
86625057
NUT,#10-24, GB
NUT, LOCK, , Esna, Inside rear view #10-24, GB
3шт.
Выбрано товаров: 20
