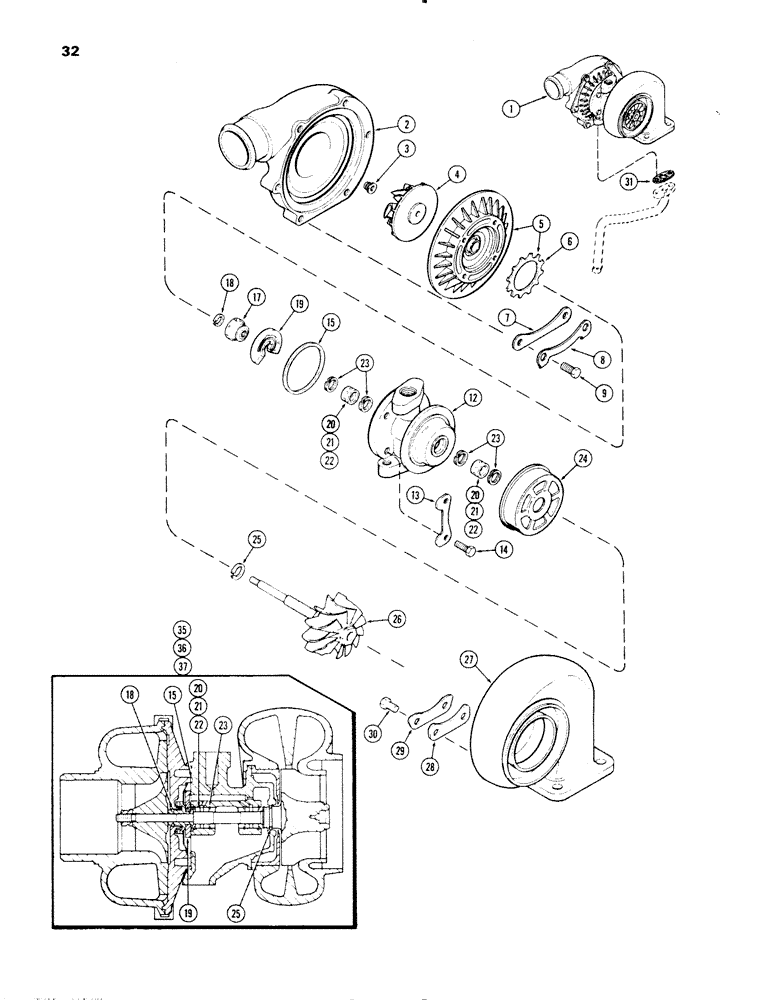

Запчасти Case IH 1270 (032) - TURBO-CHARGER ASSEMBLY, (451 BDT) DIESEL ENGINE, MODEL T04B WITH BACK PLATE CLAMPS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A44051
CORE-TURBOCHARGER
TURBO-CHARGER - return number (See Note)
1шт.
1
A44052
TURBOCHARGER
TURBO-CHARNGER - rebuilt, Includes Ref: 2-30
1шт.
1
A48190
REMAN-TURBOCHARGER
1270 SN 8736001 & Aft., Reman Replacing P/N A44052
1шт.
1
A48189
CORE-TURBOCHARGER
Return Number
1шт.
2
A45097
HOUSING
- compressor wheel (Replaces A44837)
1шт.
3
A45090
NUT
- lock, compressor wheel (Replaces A44831)
1шт.
4
A45015
IMPELLER
- (Replaces A44847)
1шт.
5
A45095
PLATE
- back (Replaces A44836), Includes Ref: 6
1шт.
6
NSS
NOT SOLD SEPARAT
SPRING - thrust
1шт.
7
A44838
CLAMP
- turbine housing
3шт.
8
A44839
PLATE
- lock, turbine housing bolt
3шт.
9
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
6шт.
12
A44825
HOUSING
- center
1шт.
13
A41820
COIL
PLATE - lock, center housing bolt
2шт.
14
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
4шт.
15
A44833
RING
- seal, center housing
1шт.
17
A44830
COLLAR
- thrust
1шт.
18
A44828
RING
- piston (1/2" O.D.)
1шт.
19
A44832
THRUST BEARING,0.172"
BEARING - thrust plate
1шт.
20
A44826
BEARING
- center (Std.)(Order Ref. 35)
2шт.
21
A44849
BUSHING
BEARING - center (.005" undersize)(Order Ref. 36)
2шт.
22
A44850
BUSHING
BEARING - center (.010" undersize)(Order Ref. 37)
2шт.
23
A44827
RING
- snap, bearing retaining
4шт.
24
A45091
GUARD
SHROUD - wheel (Replaces A44834)
1шт.
25
A44829
RING
- piston (23/32" O.D.)
1шт.
26
A44841
WHEEL
ASSEMBLY - turbine
1шт.
27
A44846
HOUSING
- turbine
1шт.
28
A44823
CLAMP
-, Serial Range: backplate-housing
3шт.
29
A44824
PLATE
- lock, clamp bolt
3шт.
30
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
6шт.
31
A58892
GASKET,1.59mm Thk
- oil drain tube
1шт.
35
A45344
KIT
- repair, std. center bearing (Includes Ref. 15, 18, 19, 20, 23, 25 & 31)
1шт.
36
A45345
KIT
- repair, .005" undersize center bearing (Includes Ref. 15, 18, 19, 21, 23, 25 & 31)
1шт.
37
A45346
KIT
- repair, .010" undersize center bearing (Includes Ref. 15, 18, 19, 22, 23, 25 & 31)
1шт.
Выбрано товаров: 34
