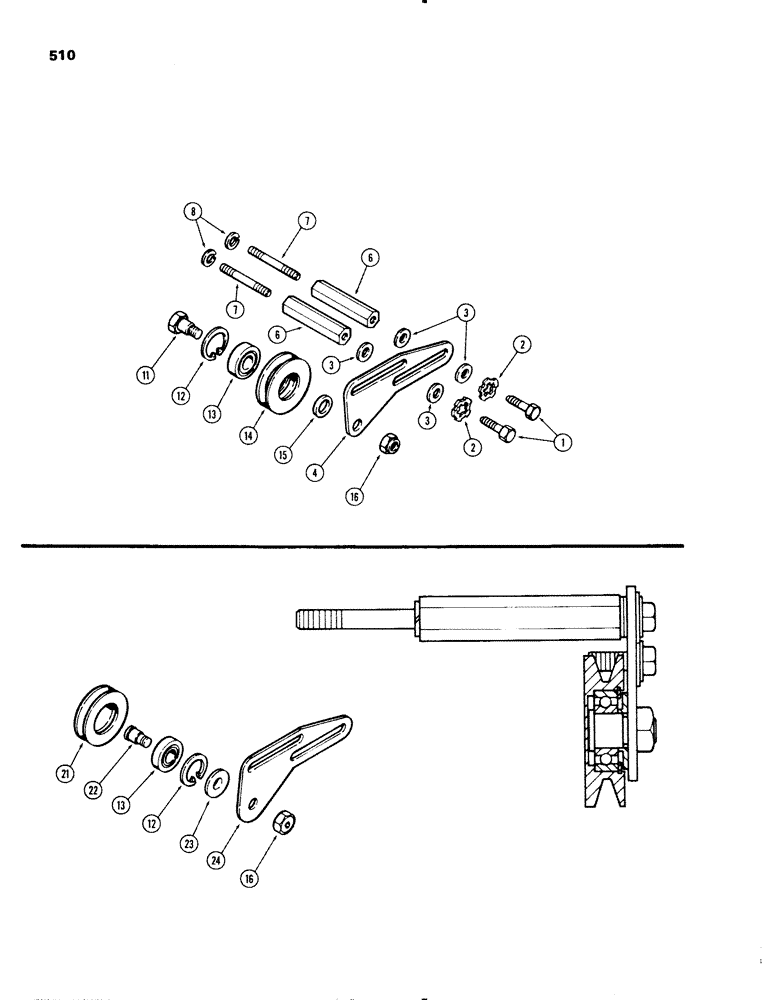

Запчасти Case IH 1270 (510) - AIR CONDITIONER, IDLER AND PULLEY (09) - CHASSIS/ATTACHMENTS

1

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

2

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" interior/exterior shakeproof

2шт.

3

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

4

A65784

PLATE

- idler adjusting

1шт.

6

A65668

MOUNTING PARTS

POST - mounting, idler plate

2шт.

7

A65667

STUD

- idler post mounting, 3/8" NC x 3-5/16"

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

11

A65782

PIN

- idler pulley

1шт.

12

T28736

SNAP RING,1.562", Int, #156

Ring, Snap, , brg 1.562", Int, #156

1шт.

13

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - idler pulley

1шт.

14

A65780

PULLEY

- idler, compressor drive belt

1шт.

15

A65783

SPACER

- idler

1шт.

16

131-1145

JAM NUT,5/8" - 18

NUT - lock, 9/16" NF hex jam (Gripco)

1шт.

21

A149736

PULLEY

- idler, compressor drive belt, for heavy duty application

1шт.

22

A149737

PIN

- idler pulley, for heavy duty application

1шт.

23

A149735

SPACER

- idler, for heavy duty application

1шт.

24

A149738

PLATE

- idler adjusting, for heavy duty application

1шт.
