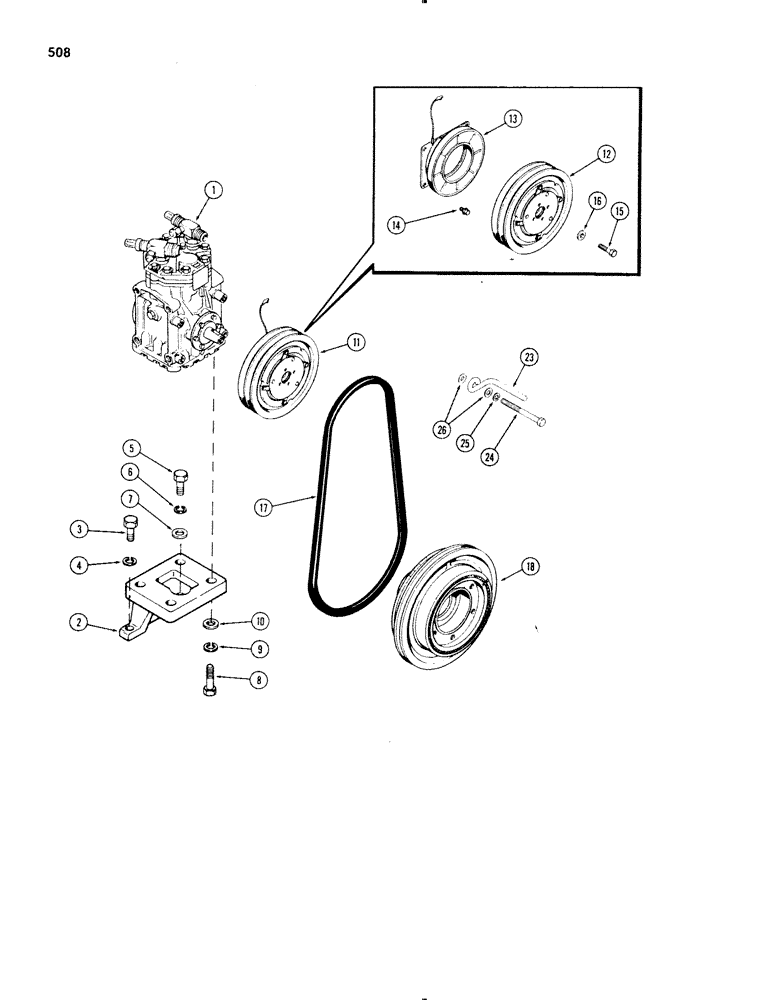

Запчасти Case IH 1270 (508) - AIR CONDITIONER, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR ASSEMBLY , See Figure: 516

1шт.

2

A64147

BRACKET

- compressor mounting

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

6

92-7

LOCK WASHER,7/16"

1шт.

7

195-2065

WASHER,33/64" x 7/8" x .049"

- 7/8 x 33/64 x 3/64" (between water pump & bracket)

1шт.

7

A57090

WASHER

- spacer (between water pump & bracket)

1шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

95-6

WASHER,3/8"

- (1/2 x 1 x 5/64")

4шт.

11

A66057

CLUTCH

ASSEMBLY - compressor (Warner Electric #1-1436-14), Includes Ref: 12-16

1шт.

12

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY - rotor

1шт.

13

A44568

ELECTRIC CLUTCH

FIELD ASSEMBLY - pulley

1шт.

14

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.F. hex.)

1шт.

16

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

17

A65717

V-BELT,0.50" W x 72.80" L

Compressor Drive 0.50" W x 72.80" L

1шт.

17

A65716

V-BELT,0.50" W x 72.80" L

Compressor Drive, Replaced A62962, Order A65717 0.50" W x 72.80" L

1шт.

18

A66446

PULLEY

- compressor drive (on crankshaft)

1шт.

A65719

KIT

- rub bar, drive belt (Order individual parts), Includes Ref: 23-26

1шт.

23

A65718

GUARD

BAR - rub KIT

1шт.

24

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Rub bar kit Hex, 3/8"-16 x 4", G5

1шт.

24

113-2201

BOLT,Locking, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex. (Not Used), rub bar kit

1шт.

25

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, , Rub Bar Kit 3/8"

1шт.

26

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64"), rub bar kit

2шт.
