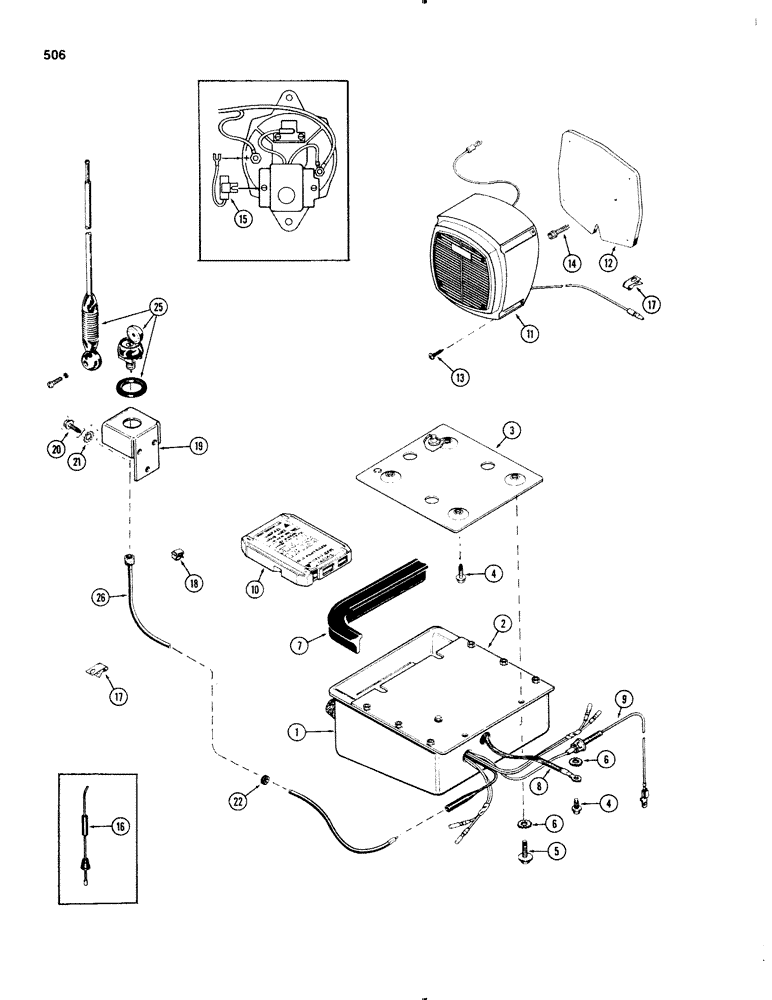

Запчасти Case IH 1270 (506) - RADIO AND TAPE PLAYER KIT (09) - CHASSIS/ATTACHMENTS

A143542

RADIO

& TAPE PLAYER KIT - AM-FM (Also order A62457 antenna kit for complete installation) (Replaces A137760), Includes Ref: 1-22

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO & TAPE PLAYER

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - mounting (Includes bolts)

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - adapter, Serial Range: radio-roof

1шт.

4

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" self tapping

4шт.

5

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW - 1/4 x 1" self tapping

2шт.

6

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int./ext. Shakeproof

2шт.

7

A137175

SUPPORT

MOULDING - trim, radio front

1шт.

8

NSS

NOT SOLD SEPARAT

STRAP - ground

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE - lead in (Includes fuse)

1шт.

10

NSS

NOT SOLD SEPARAT

TAPE - cleaning, tape player

1шт.

11

NSS

NOT SOLD SEPARAT

SPEAKERS KIT - stereo (Incl. 2 speakers w/wires)

1шт.

12

A137174

BOARD - speaker mounting

2шт.

13

187-1020

SCREW,Cross Hd, #8 x 3/4"

- #8 x 3/4" Phillips self tapping

4шт.

14

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - 1/4 x 1-1/2" N.F. self-tapping

2шт.

15

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator

1шт.

16

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor (w/gas engine only)

1шт.

17

A20541

CLIP

- wire

12шт.

18

A62079

CLIP

- wire & antenna cable

5шт.

19

NSS

NOT SOLD SEPARAT

BRACKET - antenna

1шт.

20

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" self-tapping

2шт.

21

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int./ext. Shakeproof

2шт.

22

A23870

GROMMET

- antenna cable (Replaces D38275)

1шт.

A62457

ANTENNA

KIT, Includes Ref: 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

ANTENNA ASSEMBLY

1шт.

26

NSS

NOT SOLD SEPARAT

CABLE - antenna

1шт.
