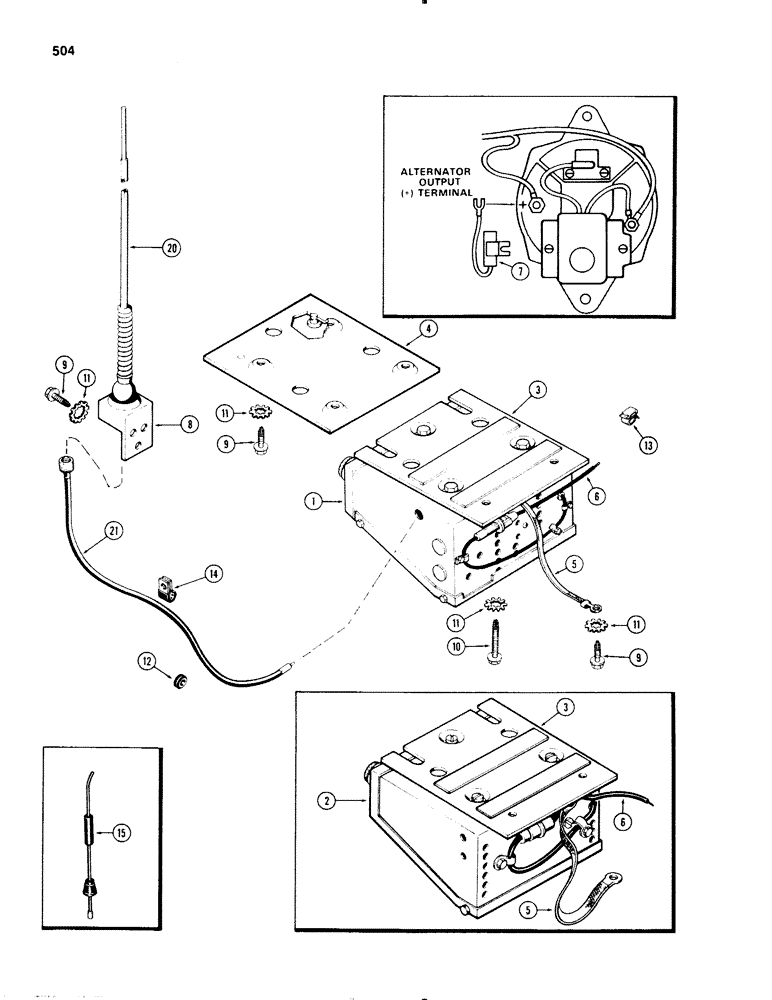

Запчасти Case IH 1270 (504) - RADIO KIT (09) - CHASSIS/ATTACHMENTS

A62456

RADIO

KIT - AM only (See Note), Includes Ref: 1-15

1шт.

A135619

RADIO

KIT - AM-FM (See Note), Includes Ref: 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO - w/speaker (AM-FM)

1шт.

2

NSS

NOT SOLD SEPARAT

RADIO - w/speaker (AM only)

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - radio mounting, w/bolts

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - roof mounting adapter

1шт.

5

NSS

NOT SOLD SEPARAT

STRAP - ground (9-1/2" long)

1шт.

6

NSS

NOT SOLD SEPARAT

WIRE - lead in (Hot) (60") (Includes 5 amp. fuse)

1шт.

223-36

FUSE,2 Amp, Type 3AG

- 5 amp (1-1/4" long)

1шт.

7

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - antenna mounting

1шт.

9

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, 1/4 x 1/2" hex. washer hd

6шт.

10

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW - self-tapping, 1/4 x 1" hex. washer hd

2шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext.

4шт.

12

A23870

GROMMET

- antenna lead thru frame (3/8" I.D.)

1шт.

13

A62079

CLIP

- radio wire

5шт.

14

A20541

CLIP

- antenna, Serial Range: wire-headliner

6шт.

15

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor (Not used on diesel models)

1шт.

A62457

ANTENNA

KIT - (See Note), Includes Ref: 20, 21

1шт.

20

NSS

NOT SOLD SEPARAT

ANTENNA

1шт.

21

NSS

NOT SOLD SEPARAT

CABLE - lead-in, 84" long

1шт.
