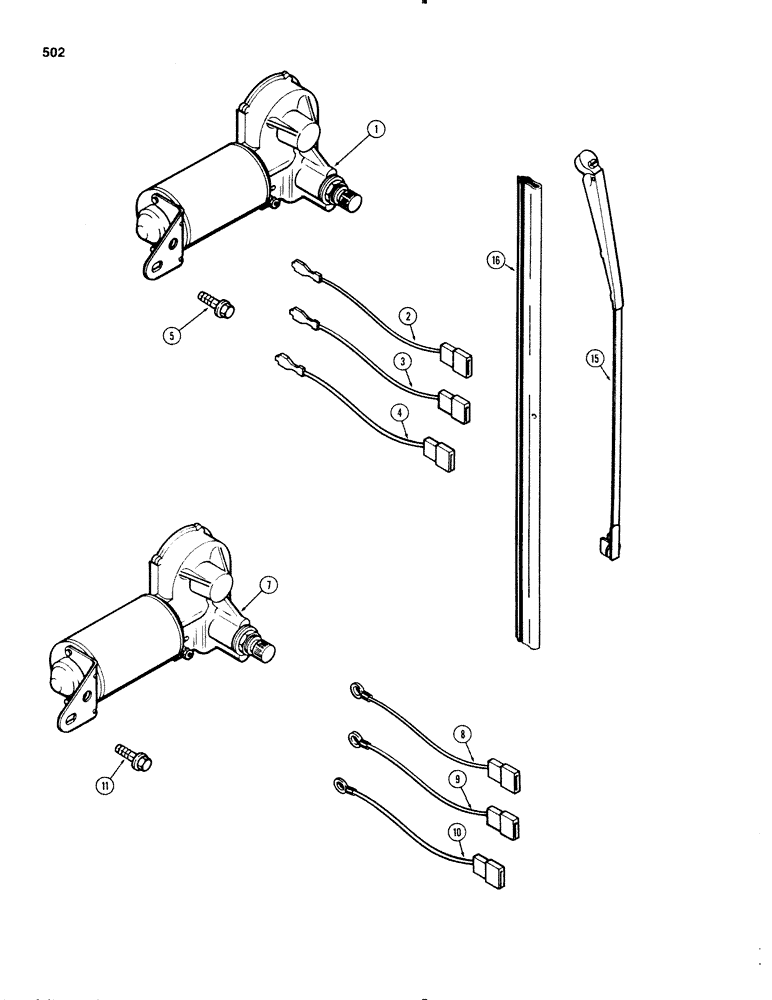

Запчасти Case IH 1270 (502) - CAB, WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

F98158

MOTOR, ELECTRIC

MOTOR ASSEMBLY - wiper (1st used cab ser. no. 7882601), Includes Ref: 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - (Order F98158)

1шт.

2

F64188

ELECTRICAL WIRE

WIRE - motor (green)

1шт.

3

F64189

ELECTRICAL WIRE

WIRE - motor (blue)

1шт.

4

F64190

ELECTRICAL WIRE

WIRE - motor (orange)

1шт.

5

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, "#10-16 x 1/2" slotted washer head

1шт.

A42692

MOTOR

ASSEMBLY - wiper (Used prior to cab ser. no. 7882601), Includes Ref: 7-10

1шт.

7

NSS

NOT SOLD SEPARAT

MOTOR (Order F98158)

1шт.

8

A42693

ELECTRICAL WIRE

WIRE - motor (green)

1шт.

9

A42694

ELECTRICAL WIRE

WIRE - motor (blue)

1шт.

10

A42695

ELECTRICAL WIRE

WIRE - motor (orange)

1шт.

11

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tap, #10-16 x 1/2" slotted washer hd

1шт.

15

T41946

ARM

- wiper blade (16")

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE - wiper (15")

1шт.
