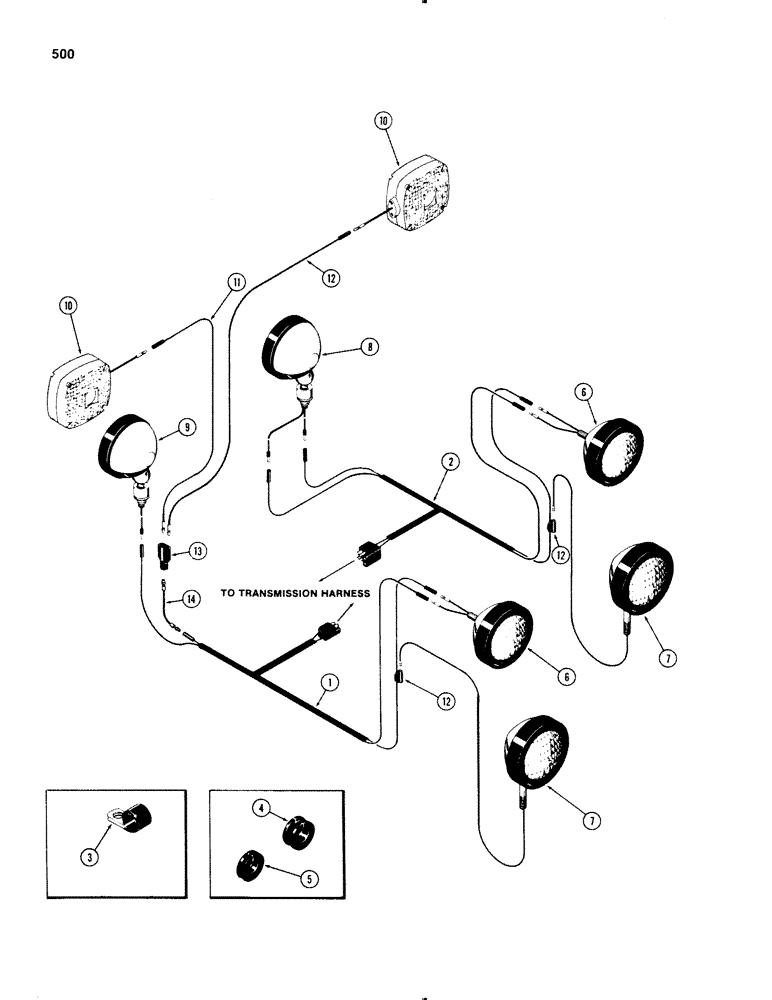

Запчасти Case IH 1270 (500) - CAB, LIGHTS AND WIRING (09) - CHASSIS/ATTACHMENTS

1

A66913

HARNESS

- R.H. (Used w/turn signals)

1шт.

1

A64006

HARNESS

R.H. (Used w/o turn signals)

1шт.

2

A66915

HARNESS

ASSEMBLY - L.H. (Used w/turn signals)

1шт.

2

A64007

HARNESS

- L.H. (Used w/o turn signals)

1шт.

3

49885

CLAMP

CLIP - wire harness

4шт.

4

353-700

BUSHING

- cab fender & frame (Replaces A31076)

3шт.

5

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- headlamp wires, cab front frame

2шт.

6

A64498

LAMP

- front head driving, See Figure: 134

2шт.

7

A59723

LAMP

- front cultivator, See Figure: 136

1шт.

8

A59703

LAMP

- rear flood & tail, See Figure: 138

1шт.

9

A63822

HEADLIGHT

LAMP - rear flood, See Figure: 138

1шт.

10

NSS

NOT SOLD SEPARAT

LAMP - flasher, See Figure: 132

2шт.

11

F63584

CABLE

- warning light (R.H.)

1шт.

12

F63585

CABLE

- warning light (L.H.)

1шт.

13

A8210

CONNECTOR, ELEC

CONNECTOR - three wire

1шт.

14

A66779

ELECTRICAL WIRE

WIRE - male bullet type

1шт.
