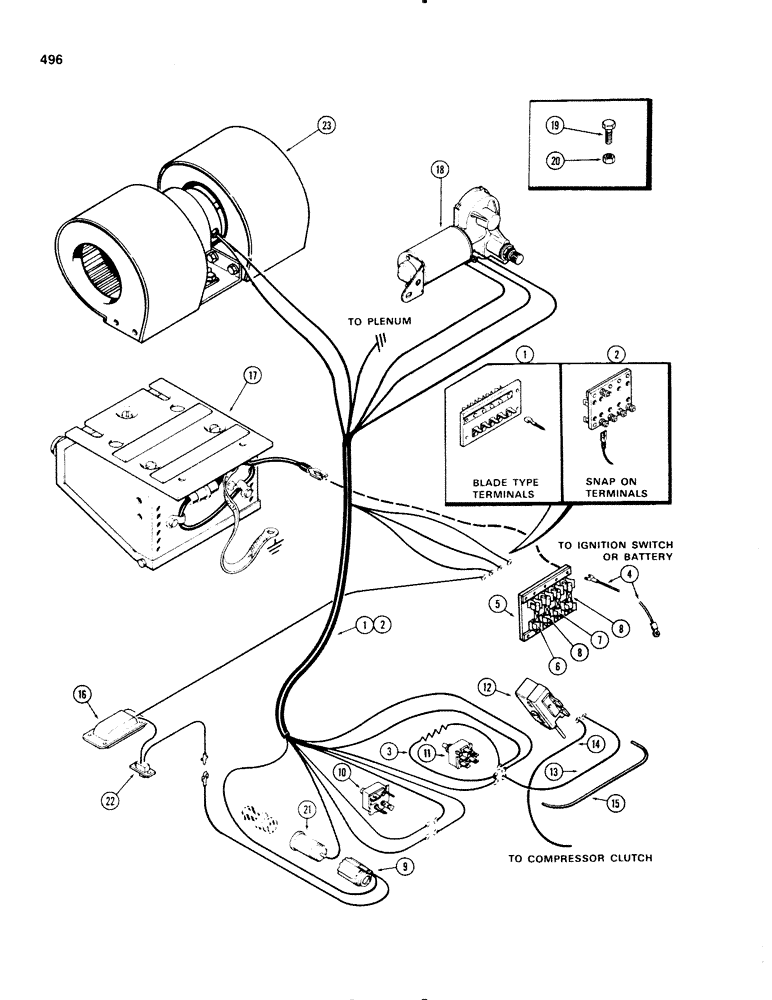

Запчасти Case IH 1270 (496) - CAB, CONTROLS AND WIRING (09) - CHASSIS/ATTACHMENTS

1

F63817

HARNESS

ASSEMBLY - (w/snap on fuse terminals) (Used prior to cab ser. no. 8741940)

1шт.

2

F64111

HARNESS

ASSEMBLY - (w/spade type fuse terminals) (1st used cab ser. no. 7841940), Includes Ref: 3

1шт.

3

A42652

ELECTRICAL WIRE

WIRE - resistor (18" orange & purple stripe)

1шт.

4

F63816

ELECTRICAL WIRE

WIRE - harness to starter switch (154-1/2" red)

1шт.

5

REF

INSTRUCTION

BLOCK - fuse mounting, See Figures: 482, 484

1шт.

6

223-33

FUSE,1 Amp, Type 3AG

- 1 amp. (dome light)

1шт.

7

223-35

FUSE,8 Amp, Type 3AG

- 8 amp. (wiper)

1шт.

8

223-15

FUSE,15 Amp, Type 3AG

- 15 amp. (blower & cigar lighter)

2шт.

9

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

10

F63532

SWITCH

- wiper motor

1шт.

11

A42622

SWITCH

- blower motor

1шт.

12

A42623

CONTROL

- cab temperature

1шт.

13

A42624

ELECTRICAL WIRE

WIRE - blower switch to temp. control (6" black)

1шт.

14

F63661

ELECTRICAL WIRE

WIRE - temp. control to compressor clutch (215" blue)

1шт.

15

F63719

TUBE

- shielding, temperature control (8-1/2")

1шт.

16

REF

INSTRUCTION

LIGHT ASSEMBLY - dome, See Figures: 482, 484

1шт.

17

REF

INSTRUCTION

RADIO KIT, See Figures: 504, 506

1шт.

18

REF

INSTRUCTION

MOTOR - windshield wiper, See Figure: 502

1шт.

19

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine (#10 x 3/8" hex.) control panel wire harness to wiper motor switch

1шт.

20

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

1шт.

21

F63530

SOCKET/RECEPTACLE

SOCKET ASSEMBLY - cigar lighter

1шт.

22

F63760

SWITCH

- dome lamp, See Figure: 482

1шт.

23

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY, See Figure: 488

1шт.
