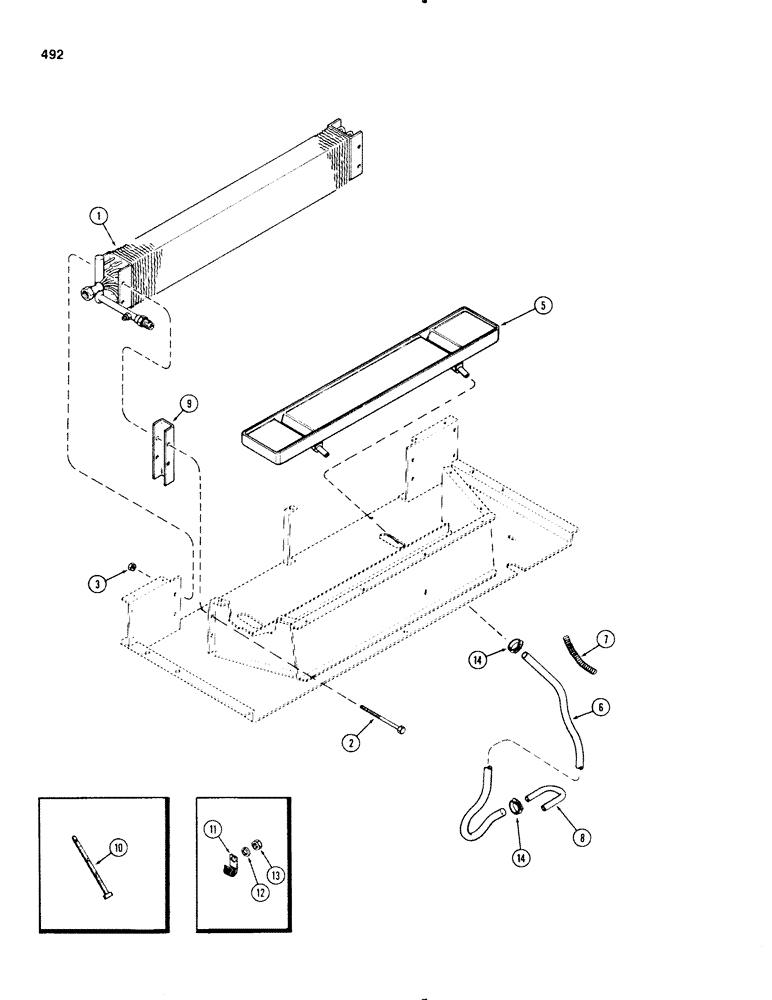

Запчасти Case IH 1270 (492) - CAB, AIR CONDITIONER, EVAPORATOR AND PAN (09) - CHASSIS/ATTACHMENTS

1

F63646

EVAPORATOR

- air conditioner evaporation

1шт.

2

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" N.C. hex

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4"

4шт.

5

F63750

PAN

- condensation

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - drain, 75" long (Order A42698)

2шт.

A42698

HOSE

- drain (1/2" I.D. x 50 ft. roll)

1шт.

7

F63327

SPRING

- upper, drain hose

2шт.

8

F63873

TUBE

- water drain, U trap

2шт.

9

F63747

RADIATOR

FILLER - plenum, R.H. & L.H. (w/air conditioner only)

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon (water trap tubes, R.H.) (Replaces L11541)

2шт.

11

A143668

CLIP

- open J type (water trap tube, L.H.) (Replaces A59718)

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- (3/8" hex.)

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

4шт.
