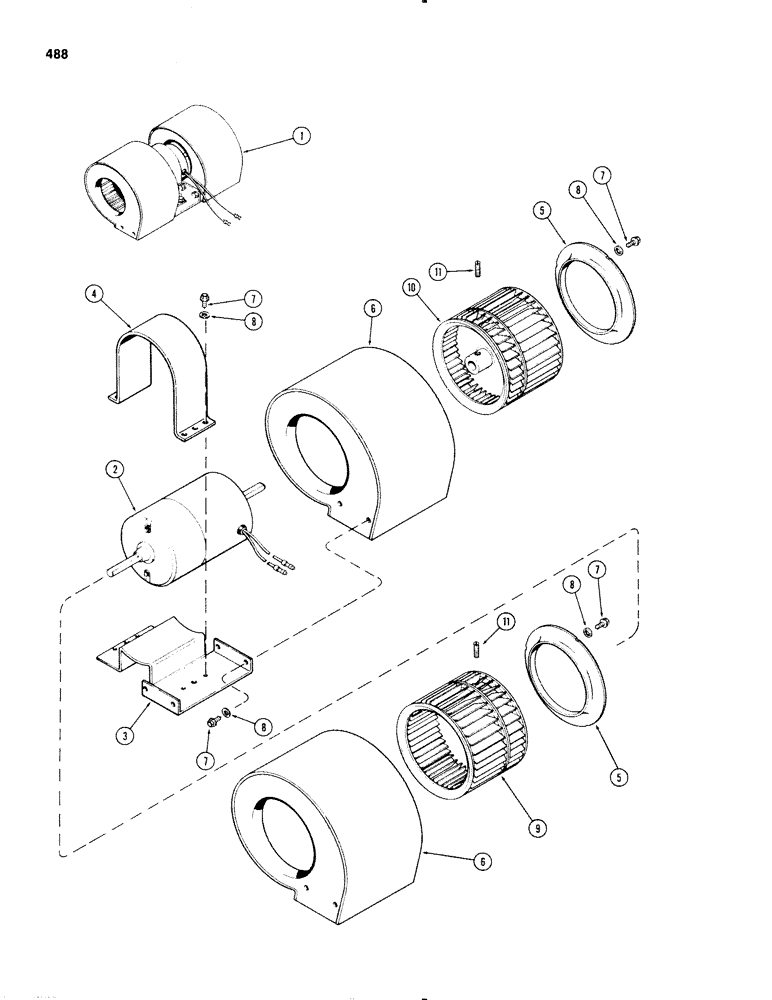

Запчасти Case IH 1270 (488) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab air (Not available as an assembly, order components), Includes Ref: 2-11

1шт.

2

F89750

MOTOR, ELECTRIC

MOTOR - blower

1шт.

3

F63652

MOTOR, ELECTRIC

MOUNT - motor

1шт.

4

F63650

CLAMP

- motor

1шт.

5

F63655

RETAINER

EYE - inlet

2шт.

6

F89797

HOUSING

- blower

2шт.

7

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 1/2" hex. sltd. washer hd.

13шт.

8

193-6

LOCK WASHER,Ext Tooth, #10

WASHER - lock, #10 int. Shakeproof

13шт.

9

A42568

WHEEL

- blower, R.H.

1шт.

10

A42569

BLOWER,Fan, RH

- blower, L.H.

1шт.

11

84-410

SET SCREW,Hex Soc, 1/4"-28 x 5/8"

SCREW - set, 1/4" N.F. hdless, socket cup pt.

2шт.
