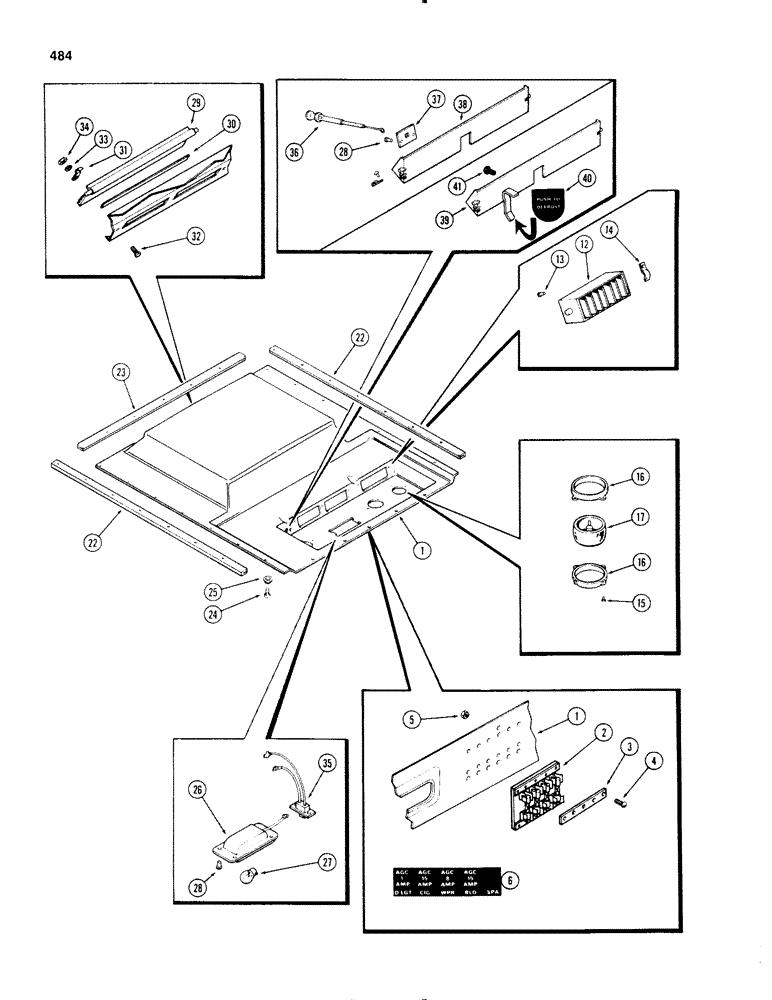

Запчасти Case IH 1270 (484) - CAB, HEADLINER AND LOUVERS, USED PRIOR TO CAB SERIAL NUMBER 7841940 (09) - CHASSIS/ATTACHMENTS

1

F63899

NO LONGER SERVICED

HEADLINER - cab

1шт.

2

F64047

HOLDER

BLOCK - fuse mounting

1шт.

3

F63512

BAR

BUSS BAR - fuse

1шт.

4

173-251

SCREW,Sl Rnd Hd, #6 - 32 x 3/4", Brass

- mach. #6-32 x 3/4" rd. hd

5шт.

4

182-533

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

- mach. (#6-32 x 1/4" rd. hd.)

3шт.

5

129-640

NUT,#6-32, Brass

- (#6-32 hex., brass)

1шт.

6

321-2738

DECAL

- fuse block

1шт.

12

F89673

GUARD

LOUVER - air deflection

2шт.

13

151-511

RIVET,Pop, 1/8" x .337"

- pop (1/8")

4шт.

14

A42575

CLIP

- mounting

6шт.

15

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - mach. (#8-15 x 5/8" rd. hd. Phillips self-tap)

12шт.

16

F63776

FRAME

- ball louver

6шт.

17

F63777

BALL

LOUVER - ball

3шт.

22

F63800

MOLDING

TRIM - side, headliner

2шт.

23

F63799

MOLDING

TRIM - rear, headliner

1шт.

24

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - mach. (#10-16 x 3/4" Phillips oval hd. self-tap)

22шт.

25

F63765

WASHER

- finishing

22шт.

26

F63894

LAMP

LIGHT ASSEMBLY - dome, Includes Ref: 27

1шт.

27

B50217

BULB

- dome light (#93)

1шт.

28

151-511

RIVET,Pop, 1/8" x .337"

- pop (1/8")

10шт.

29

F89764

FLAP

VALVE - pressure adjusting

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - valve (11") (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

31

F63810

CLIP

- valve hinge

2шт.

32

163-11

SCREW,Hex, #10 - 24 x 9/16"

- (#10 x 9/16" N.C. hex.)

2шт.

33

195-511

WASHER,#10

- (13/64 x 15/32 x 3/64")

2шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.

35

F63760

SWITCH

- dome lamp

1шт.

36

F63892

LEVER

CONTROL - defroster

1шт.

37

F63902

PLATE

PANEL - defroster control

1шт.

38

F89925

BRACKET

DOOR ASSEMBLY - defroster (Cable controlled) (See Ref. 39) (Order F89893)

1шт.

39

F89893

BRACKET

DOOR ASSEMBLY - defroster (lever controlled) (See Ref. 38)

1шт.

40

321-2995

DECAL

- lever, Serial Range: (push-defrost)

1шт.

41

353-409

PLUG,Dome, .812" hole, Nylon

- hole, control cable (13/16" dia. hole)

1шт.
