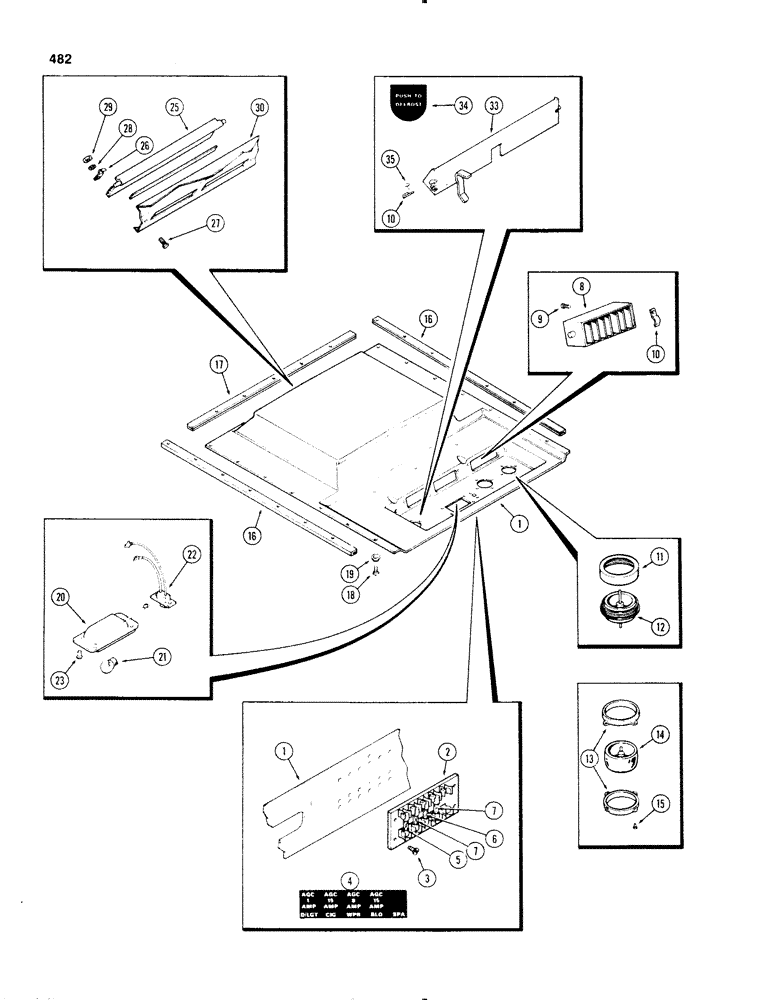

Запчасти Case IH 1270 (482) - CAB, HEADLINER AND LOUVERS, FIRST USED CAB SERIAL NUMBER 7841940 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
F64112
LINING
HEADLINER - cab
1шт.
2
63858
BLOCK ASSEMBLY - fuse (Includes buss bar)
1шт.
3
187-1085
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - (#8-15 x 5/8" rd. hd.)
4шт.
4
321-2738
DECAL
- fuse block
1шт.
5
223-33
FUSE,1 Amp, Type 3AG
- 1 amp (dome light)
1шт.
6
223-35
FUSE,8 Amp, Type 3AG
- 8 amp. (wiper)
1шт.
7
223-15
FUSE,15 Amp, Type 3AG
- 15 amp (blower & cigar lighter)
2шт.
8
F89673
GUARD
LOUVER - air deflection
2шт.
9
151-511
RIVET,Pop, 1/8" x .337"
- pop (1/8")
4шт.
10
A42575
CLIP
- mounting
4шт.
11
F64131
RING
- louver retaining (Replaces F63776) (Order F64132)
3шт.
12
F64132
GUARD
BALL - louver (Replaces F63777)
3шт.
13
F63776
FRAME
- ball louver (Order F64131 & F64132)
6шт.
14
F63777
BALL
LOUVER - ball (Order F64131 & F64132)
3шт.
15
187-1085
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - mach. (#8-15 x 5/8" rd. hd.)
12шт.
16
F63800
MOLDING
TRIM - side, headliner
2шт.
17
F63799
MOLDING
TRIM - rear, headliner
1шт.
18
187-1089
SELF-TAP SCREW,Hex Wash Hd, #8 x 3/4"
SCREW - mach. (#10-16 x 3/4" oval hd.)
19шт.
19
F63765
WASHER
- finishing
19шт.
20
F89772
LAMP
ASSEMBLY - dome, Includes Ref: 21
1шт.
21
B50217
BULB
- dome lamp (#93)
1шт.
22
F63760
SWITCH
- dome lamp
1шт.
23
151-526
RIVET,Pop, 1/8" x .337"
6шт.
25
F89764
FLAP
VALVE - pressure adjusting
1шт.
26
F63810
CLIP
- valve hinge
2шт.
27
163-11
SCREW,Hex, #10 - 24 x 9/16"
- machine (#10 x 9/16" N.C. hex.)
2шт.
28
195-511
WASHER,#10
- (13/64 x 15/32 x 3/64")
2шт.
29
86625057
NUT,#10-24, GB
NUT, LOCK, , Esna #10-24, GB
2шт.
30
NSS
NOT SOLD SEPARAT
SEAL - valve (Order A42905)
1шт.
A42905
FOAM
SEAL - foam (50' roll, Serial Range: cut-length)
1шт.
33
F89893
BRACKET
DOOR ASSEMBLY - defroster
1шт.
34
321-2995
DECAL
- defroster door lever
1шт.
35
151-526
RIVET,Pop, 1/8" x .337"
2шт.
Выбрано товаров: 33
