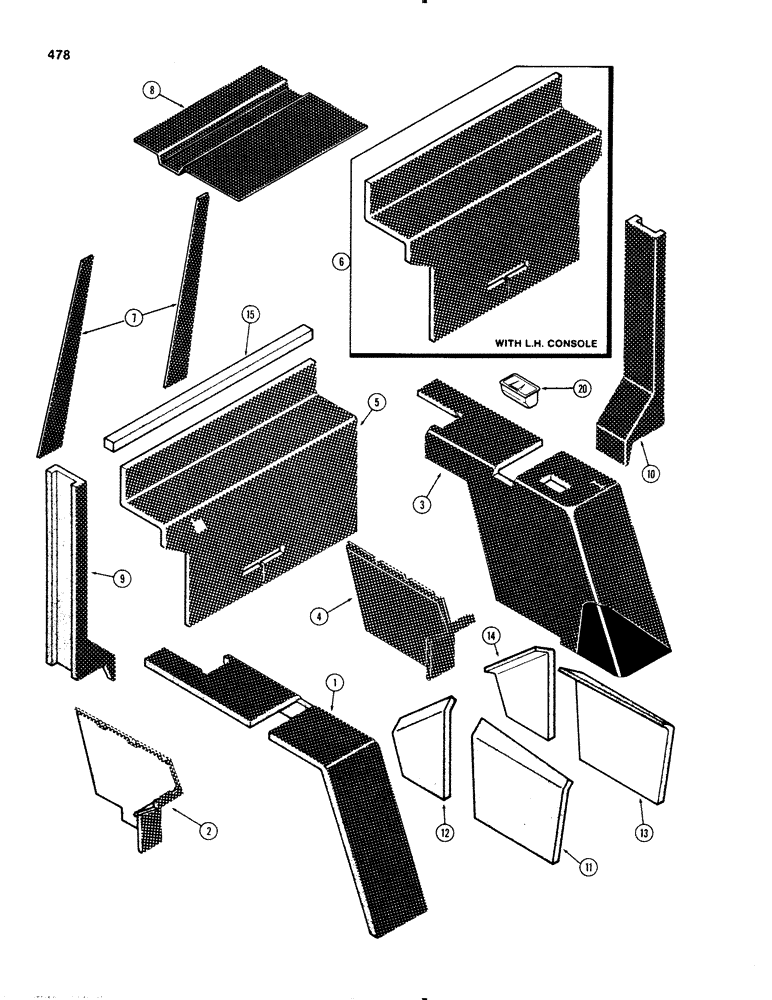

Запчасти Case IH 1270 (478) - CAB, ACOUSTICAL COVERS, USED PRIOR TO CAB SERIAL NUMBER 7855101 (09) - CHASSIS/ATTACHMENTS

1

F63983

LINING

COVER - fender panel, RH (See Note)

1шт.

2

A141981

FOAM

COVER ASSEMBLY, RH console (See Note) (Replaces A66546)

1шт.

3

F63984

LINING

COVER - fender panel, LH (See Note)

1шт.

4

A66547

FOAM

COVER ASSEMBLY, LH console (See Note)

1шт.

5

A141980

FOAM

COVER - acoustical, fuel tank (w/o LH console) (See Note) (Replaces A66543)

1шт.

6

A66544

COVER

Acoustical, fuel tank (w/LH console) (See Note)

1шт.

7

F63195

COVER

Corner filler (See Note)

2шт.

8

F63416

COVER

Headliner (See Note)

1шт.

9

F63981

COVER

Roll bar (RH) (See Note)

1шт.

10

F63982

COVER

Roll bar (LH) (See Note)

1шт.

11

REF

INSTRUCTION

FOAM - rear hood, RH side, See Figure: 476

1шт.

12

REF

INSTRUCTION

FOAM - rear hood, RH side, See Figure: 476

1шт.

13

REF

INSTRUCTION

FOAM - rear hood, LH side, See Figure: 476

1шт.

14

REF

INSTRUCTION

FOAM - rear hood, LH side, See Figure: 476

1шт.

15

A66542

FOAM

FILLER, fuel tank cover, See Figure: 476

1шт.

20

F63395

TRAY

ASH

1шт.

Cut Hole In LH Fender Covers and Insert Ash Tray

1шт.
