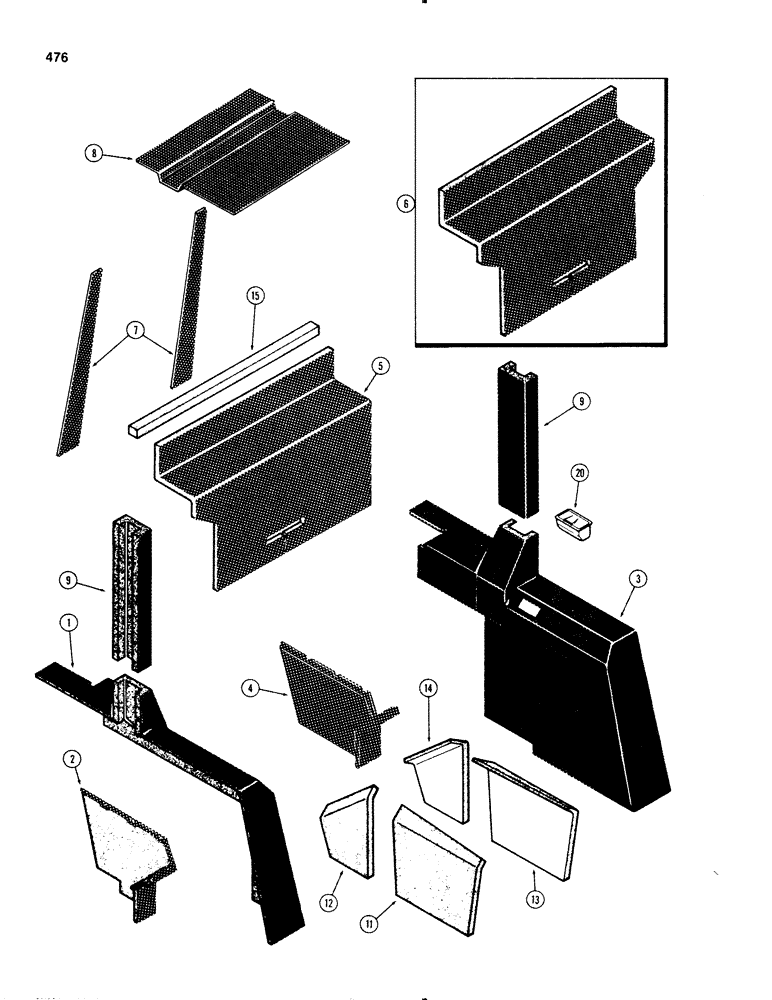

Запчасти Case IH 1270 (476) - CAB, ACOUSTICAL COVERS, FIRST USED CAB SERIAL NUMBER 8755101 (09) - CHASSIS/ATTACHMENTS

1

F64168

LINING

COVER - fender panel, R.H. (See Note)

1шт.

2

A141981

FOAM

COVER - foam, R.H. console (See Note)

1шт.

3

F64167

LINING

COVER - fender panel, L.H. (See Note)

1шт.

4

A66547

FOAM

COVER - foam, L.H. console (See Note)

1шт.

5

A141980

FOAM

COVER - fuel tank (w/o L.H. console) (See Note)

1шт.

6

A66544

COVER

- fuel tank (w/L.H. console) (See Note)

1шт.

7

F63195

COVER

- corner filler (See Note)

2шт.

8

F63416

COVER

- headliner (See Note)

1шт.

9

F64159

LINING

COVER - roll bar (See Note)

2шт.

11

A66538

FOAM

- rear hood, R.H. side

1шт.

12

A66539

FOAM

- rear hood, R.H. side (Rear)

1шт.

13

A66540

FOAM

- rear hood, L.H. side

1шт.

14

A66541

FOAM

- rear hood, L.H. side (Rear)

1шт.

15

A66542

FOAM

FILLER - foam, fuel tank cover (See Note)

1шт.

20

F63395

TRAY

ASH TRAY

1шт.
