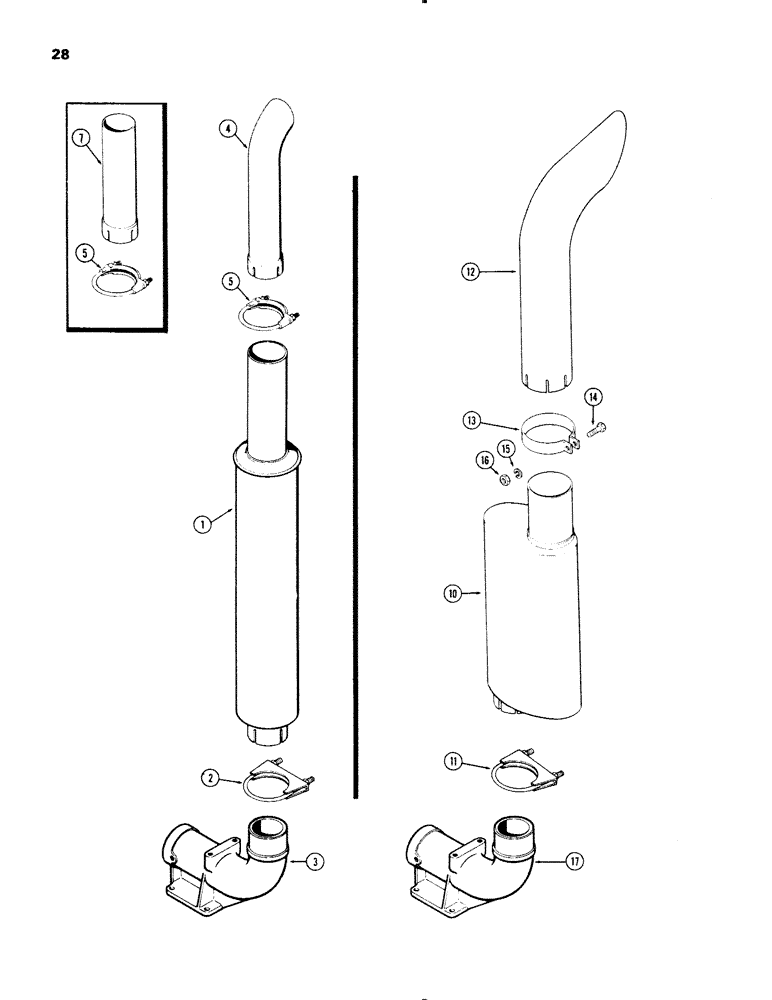

Запчасти Case IH 1270 (028) - MUFFLER, (451 BDT) DIESEL ENGINE, WITH STANDARD AIR CLEANER (02) - ENGINE

1

A64990

MUFFLER

Exhaust

1шт.

2

A17851

CLAMP

Muffler

1шт.

3

REF

INSTRUCTION

ELBOW - exhaust, turbo-charger, See Figure 30

1шт.

4

A62850

PIPE

EXTENSION - muffler (Curved), See Ref 7

1шт.

5

A62878

CLAMP

Extension

1шт.

7

A61637

EXTENSION

Exhaust (Straight), See Ref 4

1шт.

10

A66780

MUFFLER

Exhaust, With Aspirated Air Cleaner

1шт.

11

A17851

CLAMP

Muffler, With Aspirated Air Cleaner

1шт.

12

A76060

MUFFLER

Extension, With Aspirated Air Cleaner

1шт.

13

A76061

CLAMP

Extension, With Aspirated Air Cleaner

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

W/ Aspirated air cleaner

1шт.

15

192-21

LOCK WASHER,3/8"

W/ Aspirated air cleaner

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

W/ Aspirated Air Cleaner

1шт.

17

REF

INSTRUCTION

ELBOW - exhaust, turbo-charger, With Aspirated Air Cleaner, See Figure 30

1шт.
