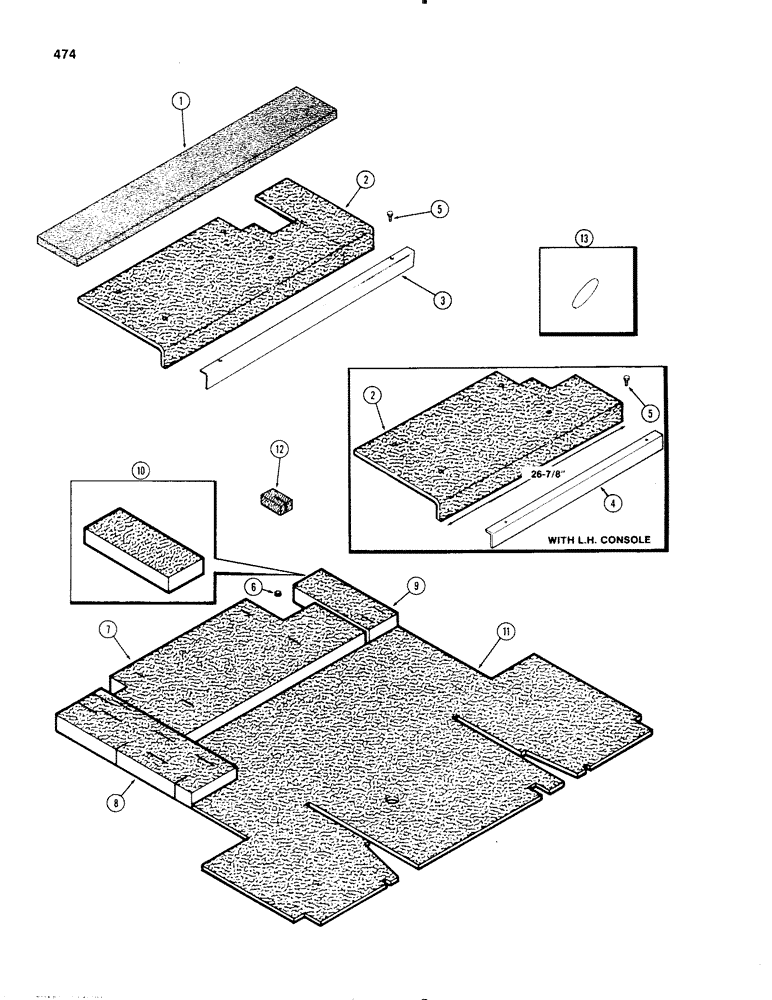

Запчасти Case IH 1270 (474) - CAB, FLOOR MATS AND INSULATION, USED PRIOR TO P.I.N. 8755218 (09) - CHASSIS/ATTACHMENTS

1

A61699

SEAL

- fuel tank sealing (See Note) (Order A141916)

1шт.

2

A64992

MAT

- floor, rear (w/L.H. console cut to 26-7/8" at perforation line) (Order A135684), See Figure: 440

1шт.

3

A62461

FLOOR

ANGLE - floor mat retaining (w/o L.H. console) (30-55/64" lg.)

1шт.

4

A64146

BRACKET

ANGLE - floor mat retaining (2/L.H. console) (26" long)

1шт.

5

187-106

SCREW

- 1/4 x 3/4" sltd. self-drill & tap

2шт.

6

A60818

GROMMET

- hand brake wire

1шт.

7

A64140

FOAM

- seat, standard (See Note)

1шт.

8

A135897

SEAL

- sealing, console bottom. R.H. (See Note) (Replaces A64138)

1шт.

9

A64139

FOAM

- sealing, console bottom, L.H. (See Note)

1шт.

10

A64141

FOAM

- seat support (w/o L.H. console) (See Note)

1шт.

11

A64142

MAT

- floor, front (Order A135683 Page 299)

1шт.

12

A60819

FOAM

- sealing, hand brake (See Note)

1шт.

13

A64438

PLUG

- front (Used w/o diff. lock) (See Note) (Order A135699)

1шт.
