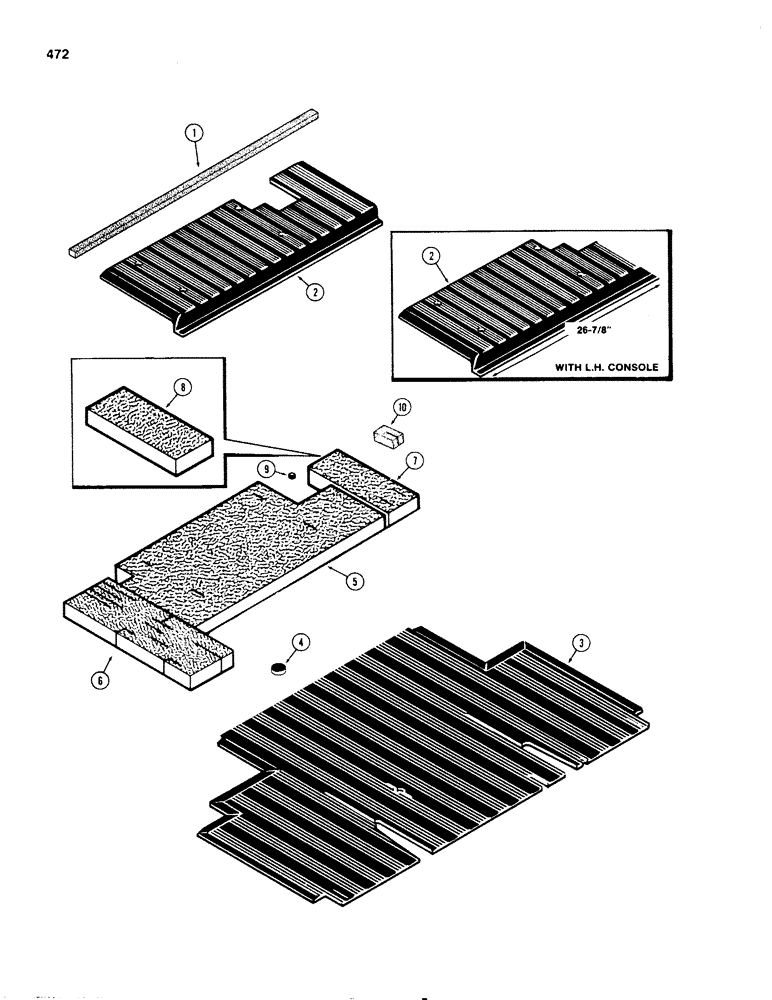

Запчасти Case IH 1270 (472) - CAB, FLOOR MATS AND INSULATION, FIRST USED P.I.N. 8755218 (09) - CHASSIS/ATTACHMENTS

1

A141916

SEAL

- fuel tank sealing (See Note) (Replaces A61699)

1шт.

2

A135684

MAT

- floor rear (w/L.H. console cut to 26-7/8" at perforated line) (Replaces A64992)

1шт.

3

A135683

MAT

- floor front (Replaces A64142)

1шт.

4

A135699

PLUG

- front floor mat (w/o differential lock)

1шт.

5

A64140

FOAM

- seating, seat support plate (See Note)

1шт.

6

A135897

SEAL

- sealing, R.H. console (See Note) (Replaces A64138)

1шт.

7

A64139

FOAM

- sealing, L.H. console (See Note)

1шт.

8

A64141

FOAM

- sealing (w/o L.H. console) (See Note)

1шт.

9

A60818

GROMMET

- hand brake cable

1шт.

10

A60819

FOAM

- sealing, hand brake lever

1шт.
