(466) - CAB, REAR WINDOW, USED PRIOR TO CAB SERIAL NUMBER 7878400

Запчасти Case IH 1270 (466) - CAB, REAR WINDOW, USED PRIOR TO CAB SERIAL NUMBER 7878400 (09) - CHASSIS/ATTACHMENTS

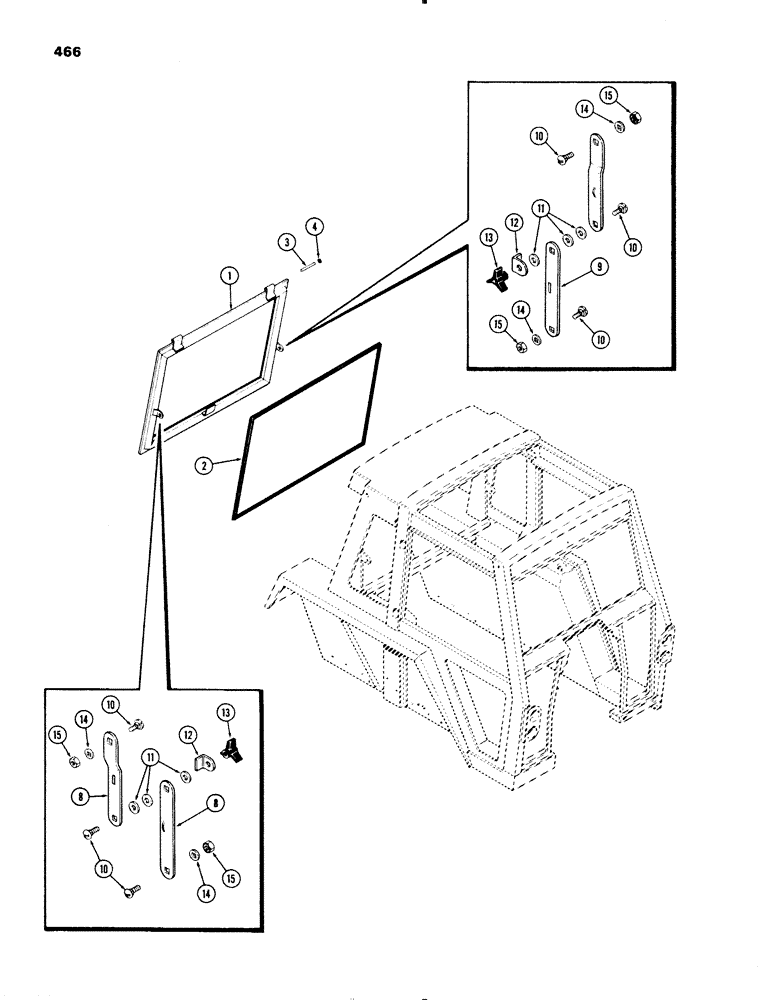

Схема запчастей Case IH 1270 - (466) - CAB, REAR WINDOW, USED PRIOR TO CAB SERIAL NUMBER 7878400 (09) - CHASSIS/ATTACHMENTS
10
15
1
12
14
9
13
8
15
2
13
14
8
11
10
14
12
10
10
11
10
3
15
4
15
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

F89387

FRAME

WINDOW ASSEMBLY - rear (Includes glass and molding) (Order F98222) (See Note), Includes Ref: 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - window

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - frame (150-1/4" long) (Order A42504)

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP - (50 foot roll) (cut to length required)

1шт.

3

A42524

PIN,9.53mm OD x 119.38mm L

- hinge

2шт.

4

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

8

F63203

ARM

ASSEMBLY - window control, right hand

1шт.

9

F63280

ARM

ASSEMBLY - window control, left hand, Includes Ref: 10-13

1шт.

10

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" NC carriage head

3шт.

11

F63299

WASHER

- friction 5/16 x 1 x 1/16"

3шт.

12

F63665

CLIP

- stop limit

1шт.

13

F63415

KNOB

- lock control arms

2шт.

14

195-521

WASHER,5/16", SAE

- 5/16 x 11/16 x 1/16"

4шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - arm ends (15/16" NC hex)

4шт.
