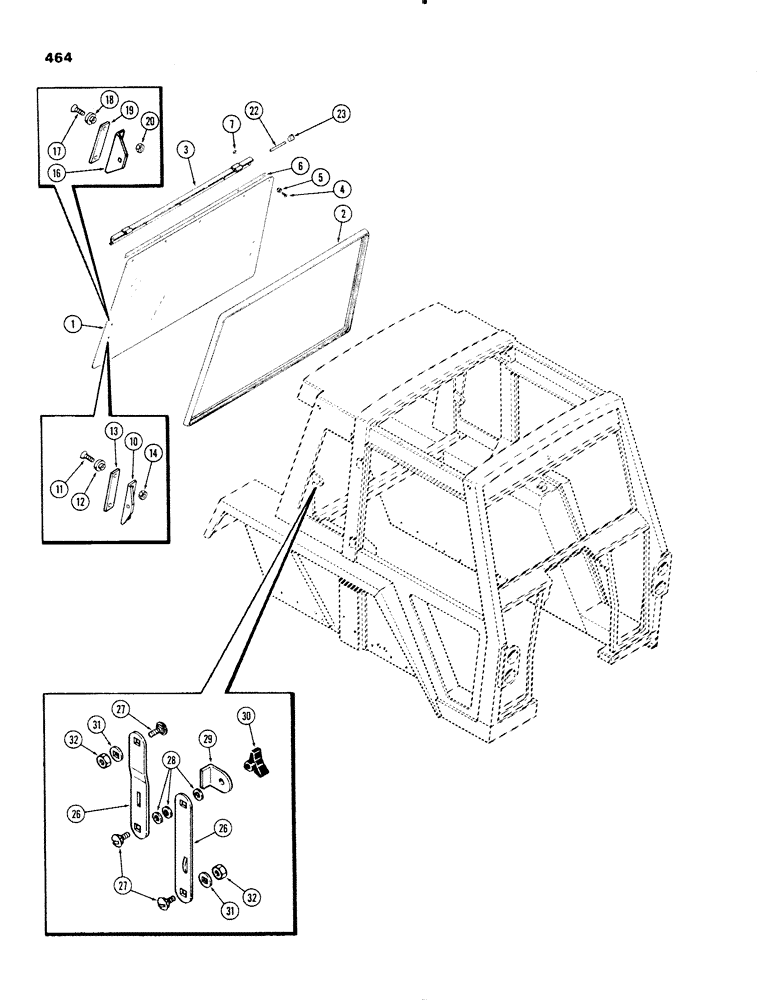

Запчасти Case IH 1270 (464) - CAB, REAR WINDOW, FIRST USED CAB SERIAL NUMBER 7878400 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
F98222
FRAME
WINDOW ASSEMBLY - rear, Includes Ref; 1-14
1шт.
1
F64202
GLASS
- (See Figure 470 for glass data)
1шт.
2
F64499
SEAL
- rear window (Replaces F64206)
1шт.
3
F98160
FRAME
CHANNEL - rear window
1шт.
4
179-155
SCREW,Cross Oval Hd, #10 - 24 x 3/4"
- channel to glass (#10-24 x 3/4")
5шт.
6
F64205
SPACER
- channel cushion (rubber)
1шт.
7
131-1142
LOCK NUT,Hex, #10 - 24, Gr A
NUT, LOCK, #10-24, GA
5шт.
10
F64138
BRACKET
- regulator arm (See inset A and Ref 16) (1st used cab serial no. 7888884)
2шт.
11
179-155
SCREW,Cross Oval Hd, #10 - 24 x 3/4"
- bracket to glass (#10-24 x 1")
4шт.
13
F64140
SPACER
- bracket (0.030" polyethylene)
4шт.
14
131-1142
LOCK NUT,Hex, #10 - 24, Gr A
NUT, LOCK, #10-24, GA
4шт.
16
F64204
BRACKET
- regulator arm (See Inset B and Ref 19) (Used prior to cab serial no. 7888884)
2шт.
17
179-159
SCREW,Cross Oval Hd, #10 - 24 x 1"
- bracket to glass (#10-24 x 1")
4шт.
18
F64178
SPACER
- screw pilot (nylon)
4шт.
19
F64140
SPACER
- bracket (0.030" polyethylene)
10шт.
20
131-1142
LOCK NUT,Hex, #10 - 24, Gr A
NUT, LOCK, #10-24, GA
4шт.
22
A42524
PIN,9.53mm OD x 119.38mm L
- hinge
2шт.
23
A42589
SNAP RING,#37, Ext
Ring, Snap, , hinge pin #37, Ext
4шт.
26
F63203
ARM
ASSEMBLY - window control, right hand
1шт.
26
F63280
ARM
ASSEMBLY - window control, left hand, Includes Ref: 27, 28
1шт.
27
A42923
CARRIAGE BOLT
BOLT - 5/16 x 7/8" NC carriage head
3шт.
28
F63299
WASHER
- friction, 5/16 x 1 x 1/16"
3шт.
29
F63665
CLIP
- stop limit
1шт.
30
F63415
KNOB
- lock, control arms
2шт.
31
195-521
WASHER,5/16", SAE
- 5/16 x 11/16 x 1/16"
4шт.
Выбрано товаров: 28
