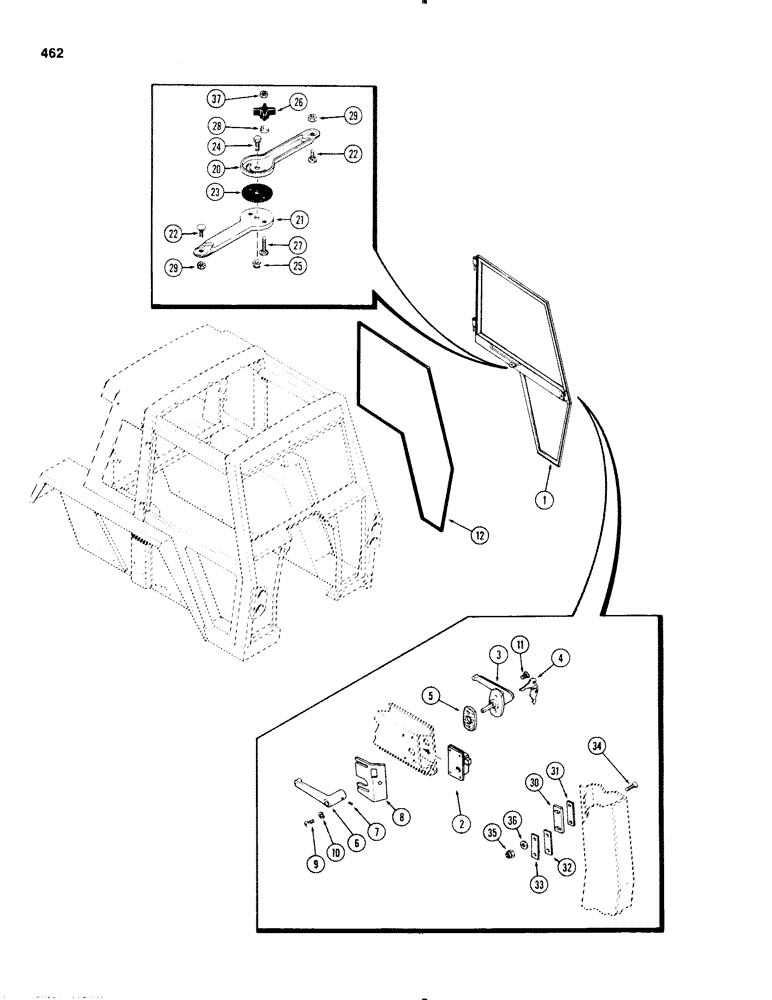

Запчасти Case IH 1270 (462) - CAB, DOOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

F98229

DOOR

ASSEMBLY - cab (Includes glass & molding) (See Note) (Replaces F89396), Includes Ref: 2-12

1шт.

2

F98123

LATCH

LOCK - door (Replaces F89708)

1шт.

3

F64122

HANDLE

ASSEMBLY - locking

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock

2шт.

5

F63860

GASKET

- outside handle

1шт.

6

F63925

HANDLE

ASSEMBLY - inside (Replaces A42588)

1шт.

7

176-49

SCREW - set (5/16 x 5/16" N.C. slt. hd. cone pt.)

1шт.

8

F63658

COVER

- door latch

1шт.

9

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine (#10-32 x 1/2" Phillips hd.)

4шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

11

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- mach. (#10-24 x 5/8" oval hd. Phillips)

2шт.

12

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - door (180-1/2") (Order A42504)

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP - (50' roll)

1шт.

20

F63993

ARM

- upper, door holder

1шт.

21

F63992

ARM

- lower, door holder

1шт.

22

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - (3/8 x 3/4" N.C. rd. hd. sq. neck)

2шт.

23

F63405

DISC

- friction, door arm

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

25

231-1445

NUT,5/16"-18, GB

NUT - lock (5/16" N.C. Esna)

1шт.

26

F63415

KNOB

- door arm

1шт.

27

111-261

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - (5/16 x 2" N.C. rd. hd. sq. neck)

1шт.

28

F63586

BUSHING

SPACER - arm

1шт.

29

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - (3/8" N.C. Crownlock)

2шт.

30

F63783

CATCH

- door

1шт.

31

F63786

SHIM

- door catch, 20 gauge

1шт.

32

F63784

SHIM

- door catch, 12 gauge (Order F63785)

1шт.

33

F63785

SHIM

- door catch, 14 gauge

1шт.

34

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- (1/4 x 1" N.C. Phillips flat hd.)

2шт.

35

86625061

NUT,1/4"-20, GB

NUT - lock (1/4" N.C. Esna)

2шт.

36

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

37

131-1117

LOCK NUT,5/16"-18, GA

NUT - (5/16" N.C. Crownlock)

1шт.
