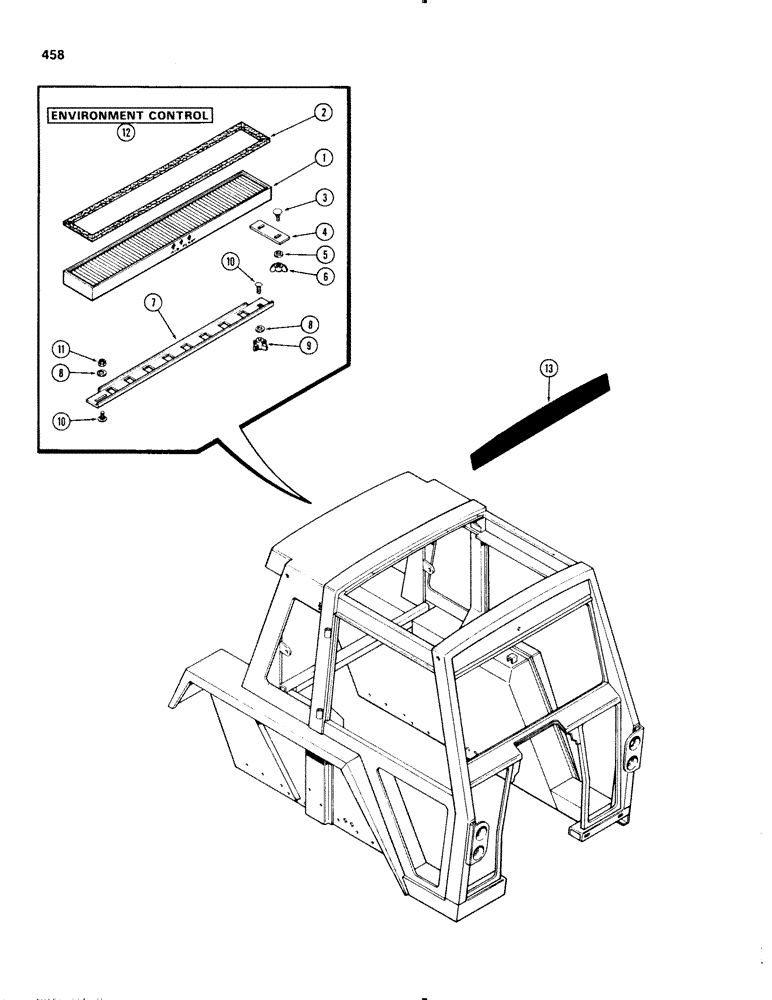

Запчасти Case IH 1270 (458) - CAB, AIR FILTER (09) - CHASSIS/ATTACHMENTS

1

F64361

FILTER

- air intake (Replaces F63436)

1шт.

2

F63674

SEAL

GASKET - filter seal

1шт.

3

111-128

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - (1/4 x 3/4" N.C. rd. hd. sq. neck)

4шт.

4

F65761

CLIP

- retaining, filter

2шт.

5

195-518

WASHER,1/4", SAE

- (9/32 x 5/8 x 1/16")

4шт.

6

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

7

F63642

PLATE

- recirculation door

1шт.

8

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 1/16")

2шт.

9

F63415

KNOB

- door control

1шт.

10

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

11

231-1445

NUT,5/16"-18, GB

NUT - lock (5/16" N.C. Esna)

1шт.

12

321-2496

DECAL

- rear, Environment Control

1шт.

13

A42582

DECAL

- front panel

1шт.
