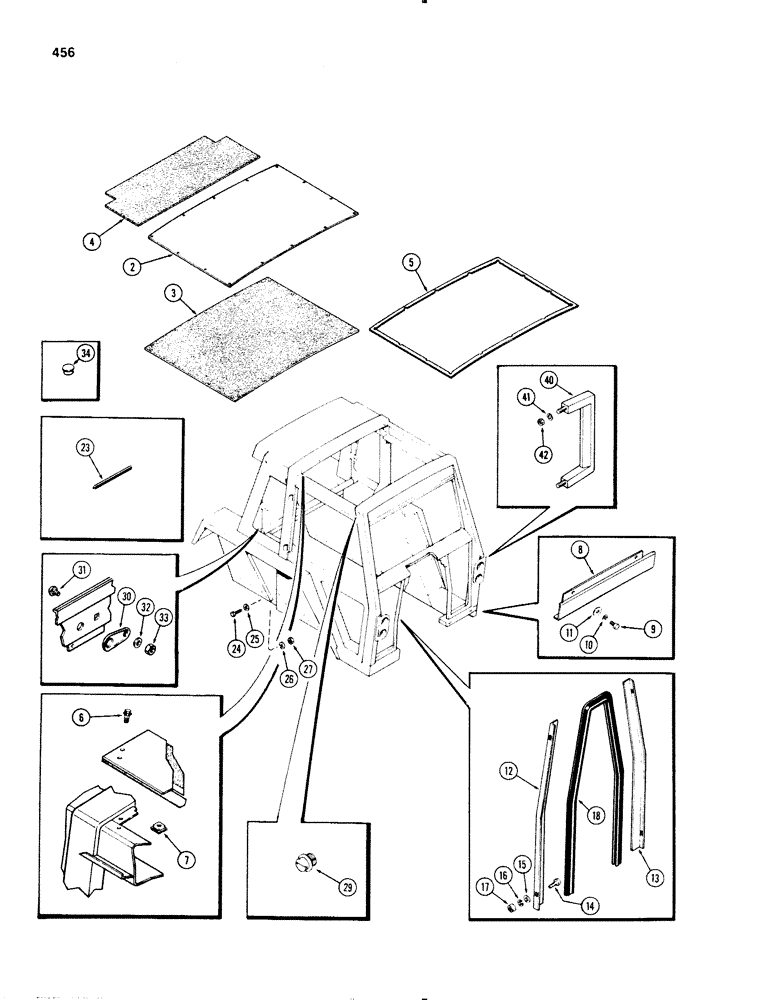

Запчасти Case IH 1270 (456) - CAB, SHEET METAL (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - cab

1шт.

2

F63644

PANEL

ROOF - cab

1шт.

3

F64430

FOAM

- roof temperature barrier (Replaces F63722)

1шт.

4

F63812

BAR

FOAM - rear, roof temperature barrier

1шт.

5

NSS

NOT SOLD SEPARAT

FOAM - roof edge (1/4 x 3/8 x 150") (Order A42676)

1шт.

A42676

SEAL

FOAM - insulation (25 ft. roll)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- mach. (1/4 x 3/4" N.C. hex. w/Neoprene washer)

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- (1/4" Tinneman)

18шт.

8

F89393

PANEL - battery access (Used prior to cab ser. no. 7882601)

1шт.

8

F98141

COVER

PANEL - battery access (1st used cab ser. no. 7882601)

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 5/64")

2шт.

12

A64130

GUARD

FILLER - dust shield, R.H.

1шт.

13

A64131

GUARD

FILLER - dust shield, L.H.

1шт.

14

113-30

BOLT - (1/4 x 5/8" N.C. hex.)

6шт.

15

195-515

WASHER,#12

- (1/4 x 1/2 x 3/64")

6шт.

16

192-44

LOCK WASHER

- lock (1/4")

6шт.

17

129-517

NUT - (1/4" N.C. hex.)

6шт.

18

A62885

SEAL

- dust shield (90" long) (See Note)

1шт.

23

NSS

NOT SOLD SEPARAT

MOLDING - under hoses (6" long) (See Note) (Order F63578)

2шт.

F63578

GASKET

MOLDING - 50' roll

1шт.

24

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- (3/8 x 1" N.C. hex.) cab sides

18шт.

24

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- (3/8 x 3/4" N.C. hex.) L.H. side

2шт.

24

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- (3/8 x 1-3/4" N.C. hex.) thru hat section

2шт.

25

195-525

WASHER,3/8", SAE

- (3/8 x 1-1/8 x 1/16")

42шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

29

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

30

F12598

PLATE

COVER - utility

1шт.

31

112-112

BOLT - (1/4 x 3/4" N.C. rd. hd. sq. neck)

1шт.

32

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

33

86625061

NUT,1/4"-20, GB

NUT - lock (1/4" N.C. hex., Esna)

1шт.

34

353-408

PLUG,Dome, .750" hole, Nylon

- post hole, R.H. & L.H. front post

2шт.

40

A60530

HANDLE

- mounting

1шт.

41

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

42

129-770

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.
