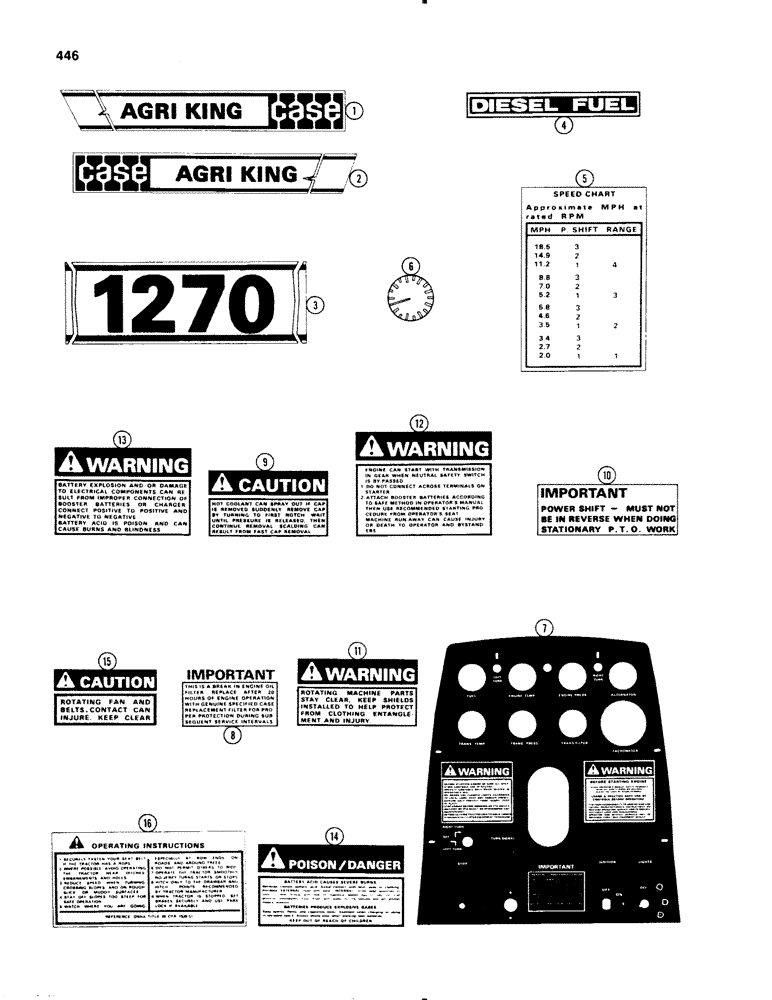

Запчасти Case IH 1270 (446) - DECALS (09) - CHASSIS/ATTACHMENTS

A44059

DECAL

KIT - tractor, Includes Ref: 1-16

1шт.

1

321-2670

DECAL

- Case Agri-King (R.H. panel)

1шт.

2

321-2671

DECAL

- Case Agri-King (L.H. panel)

1шт.

3

321-2663

DECAL

- 1270 (front panel)

2шт.

4

321-2601

DECAL

- Diesel Fuel (fuel tank)

1шт.

5

321-2634

DECAL

- 12 speed chart

1шт.

6

321-2056

DECAL

- flow control knob

1шт.

7

321-3763

DECAL

- Operating Procedure (Turbo Only) (Replaces 321-2796), Serial Range: -8801288)

1шт.

8

321-3863

DECAL

- engine oil filter change

2шт.

9

321-3708

DECAL

- Caution (Radiator cap) (Replaces 321-2100)

1шт.

10

321-2741

DECAL

- Important (Power Shift Lever)

1шт.

11

321-3710

DECAL

- Caution (P.T.O. Shield) (Replacs 321-2687)

1шт.

12

321-3709

DECAL

- Warning (On starter) (Replaces 321-2788)

1шт.

13

321-3707

DECAL

- booster charger connection

1шт.

14

321-2996

DECAL

- battery hazzard

1шт.

15

321-3596

DECAL

- fan

1шт.

16

321-3895

DECAL

- operating instructions (OSHA) (See Note)

1шт.
