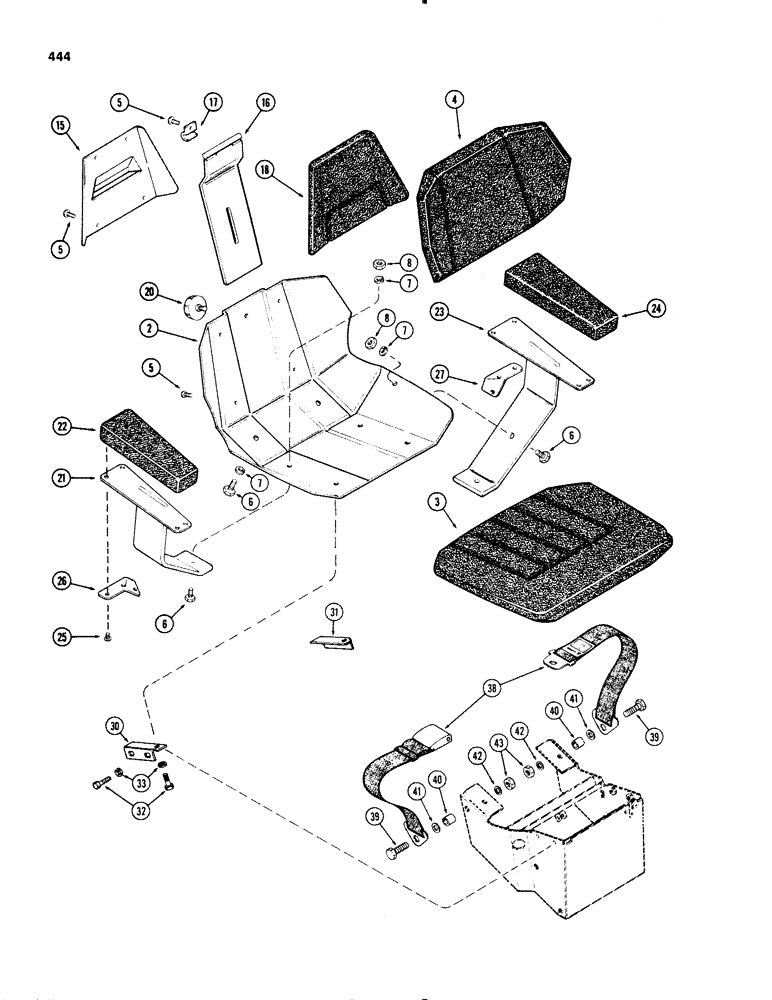

Запчасти Case IH 1270 (444) - AGRI-KING SEAT, CLOTH COVER, USED PRIOR TO P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

A66652

SEAT

ASSEMBLY - complete w/arms & backrest, Includes Ref: 2-27

1шт.

2

A66642

FRAME

- seat

1шт.

3

A64827

CUSHION

ASSEMBLY - seat bottom w/pan

1шт.

4

A64830

CUSHION

ASSEMBLY - backrest

1шт.

5

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10-24 x 3/8" pan hd. machine

12шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

15

A66649

SUPPORT

FRAME - upper backrest

1шт.

16

A66648

SUPPORT

SPRING ASSEMBLY - backrest

1шт.

17

A60479

CLIP

- upper backrest pivot

2шт.

18

A64832

CUSHION

- upper backrest

1шт.

20

A60468

KNOB

ASSEMBLY - adjusting, backrest

1шт.

21

A66643

SUPPORT

- R.H. armrest

1шт.

22

A64834

CUSHION

- R.H. armrest

1шт.

23

A66644

SUPPORT

- L.H. armrest

1шт.

24

A64835

CUSHION

- L.H. armrest

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/2" round hd

8шт.

26

A66645

SUPPORT

- R.H., Serial Range: armrest-backrest

1шт.

27

A66646

SUPPORT

- L.H., Serial Range: armrest-backrest

1шт.

30

A66650

BRACKET

- seat support, R.H.

1шт.

31

A66651

BRACKET

- seat support, L.H.

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

33

193-20

WASHER,Ext-Int Tooth, 7/16"

- lock (5/16")

4шт.

38

A66391

SAFETY BELT

SAFETY BELT

1шт.

39

A61946

STEP BOLT

BOLT - shoulder, seat belt, safety

2шт.

40

A60907

BUSHING

SPACER - anchor bolt, seat belt, safety

2шт.

41

195-529

WASHER,7/16", SAE

- (15/32 x 59/64 x 1/16"), safety seat belt

2шт.

42

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

43

425-117

NUT,7/16"-20, G5

- (7/16" N.C. hex.), safety seat belt

2шт.
