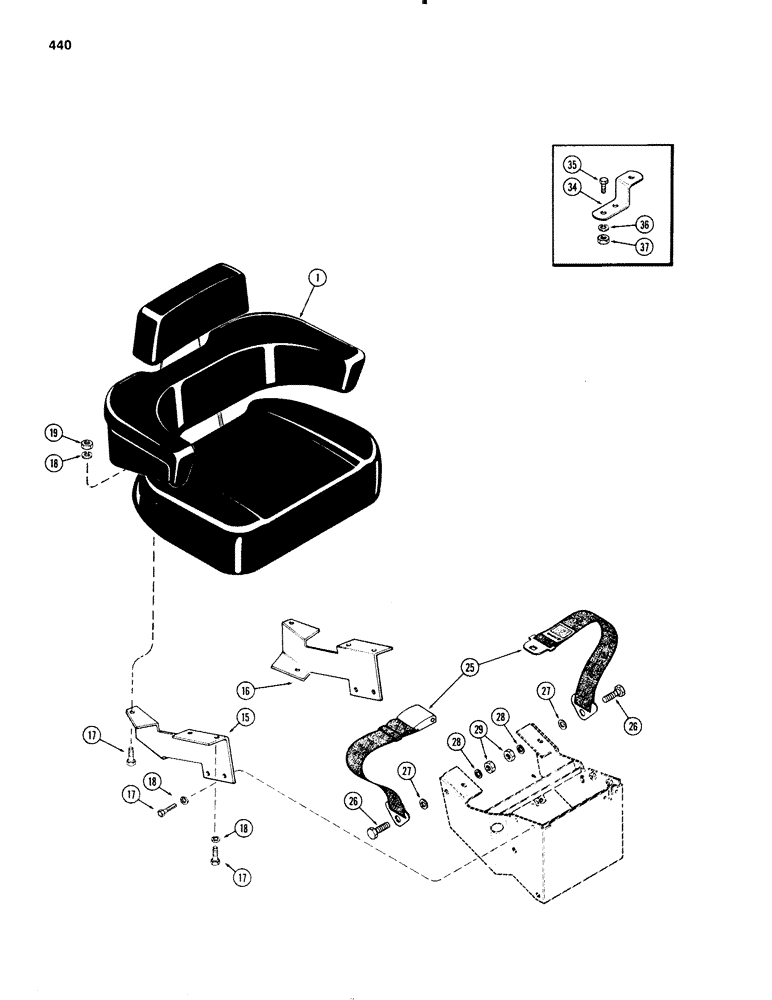

Запчасти Case IH 1270 (440) - SERIES 30 SEAT, USED PRIOR TO P.I.N. 8736001 (09) - CHASSIS/ATTACHMENTS

1

A66655

SEAT

ASSEMBLY - Series 30

1шт.

15

A66657

BRACKET

- seat support, R.H.

1шт.

16

A66656

BRACKET

- seat support, L.H.

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

A66391

SAFETY BELT

SAFETY BELT, Use only with cab or Rops

1шт.

26

A61946

STEP BOLT

BOLT - shoulder, seat belt, safety, use only with cab or rops

2шт.

27

195-529

WASHER,7/16", SAE

- (15/32 x 59/64 x 1/16"), safety seat belts, use only with cab or rops

2шт.

28

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt, use only with cab or ROPS 7/16"

2шт.

29

425-117

NUT,7/16"-20, G5

- (7/16" N.C. hex.), safety seat belt, use only with cab or rops

2шт.

34

A62177

BRACKET

- seat belt anchor (Use with Series 30 seat only & with field installed cab)

2шт.

35

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Safety seat belt, use only with cab or rops Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

36

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belts, use only with cab or ROPS 7/16"

4шт.

37

129-104

NUT,7/16"-14, G5

Safety seat belt, use only with cab or ROPS 7/16"-14, G5

4шт.
