(024) - COLD WEATHER STARTING AIDS, ETHER STARTING KIT, FIELD INSTALLED

Запчасти Case IH 1270 (024) - COLD WEATHER STARTING AIDS, ETHER STARTING KIT, FIELD INSTALLED (02) - ENGINE

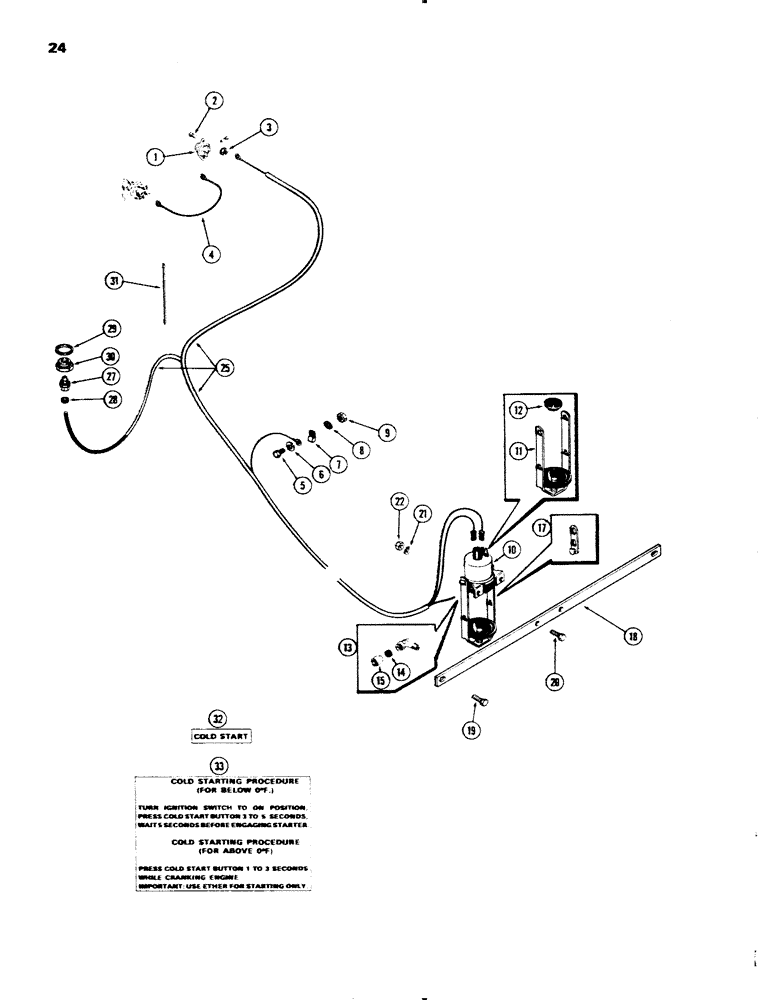

Схема запчастей Case IH 1270 - (024) - COLD WEATHER STARTING AIDS, ETHER STARTING KIT, FIELD INSTALLED (02) - ENGINE
18
31
1
14
32
25
9
19
30
5
33
28
11
10
13
3
8
4
29
2
27
6
29
12
15
21
17
7
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A145617

KIT

- ether starting (Replaces A65884), Includes Ref: 1-33

1шт.

1

A36948

SWITCH

- ether solenoid

1шт.

2

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd

2шт.

3

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10-24" hex. Keps

2шт.

4

A62713

ELECTRICAL WIRE

WIRE - switch to starting switch

1шт.

5

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Harness clip) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7

A7922

CLIP

- harness (on radiator support for ground)

1шт.

8

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" int.-ext. Shakeproof

1шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

10

A143381

SOLENOID

ASSEMBLY - ether injector (Replaces A62441), Includes Ref: 11-15

1шт.

11

A45687

CLAMP

BAIL - ether can

1шт.

12

R30786

GASKET

- can

1шт.

13

A44809

FITTING

ELBOW - check valve (1/8" tube x 1/8" P.T.), Includes Ref: 14, 15

1шт.

14

222-650

SLEEVE,1/8" Tube, Comp

1шт.

15

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- 1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

17

R30812

LINK

- bail extension

1шт.

18

A65885

BRACKET

- solenoid mounting

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket to grille Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Solenoid to brkt.

2шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

A143894

HARNESS

ASSEMBLY - wire and injector tube (Replaces A62773)

1шт.

27

A145070

NOZZLE INJECTION

INJECTOR ASSEMBLY - ether (Replaces A62775), Includes Ref: 28

1шт.

28

222-650

SLEEVE,1/8" Tube, Comp

1шт.

29

A20916

MANIFOLD GASKET

GASKET -, Serial Range: injector-manifold

1шт.

30

L10283

PLUG

ADAPTER -, Serial Range: injector-manifold

1шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon (Replaces L11541)

7шт.

32

321-1752

DECAL

- switch, cold start

1шт.

33

321-2946

DECAL

- instruction

1шт.
