(430) - SEAT AND SUSPENSION ASSEMBLY, SWIVEL WITH CLOTH COVER, FIRST USED P.I.N. 8797501

Запчасти Case IH 1270 (430) - SEAT AND SUSPENSION ASSEMBLY, SWIVEL WITH CLOTH COVER, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

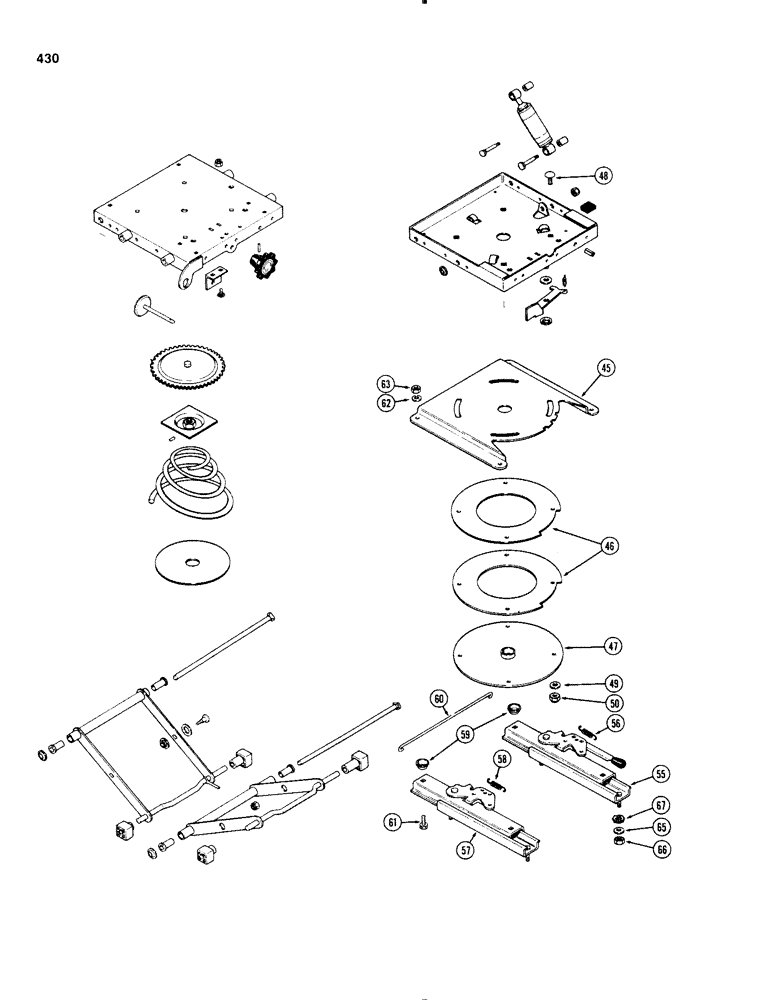

Схема запчастей Case IH 1270 - (430) - SEAT AND SUSPENSION ASSEMBLY, SWIVEL WITH CLOTH COVER, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS
61
46
50
57
59
49
66
58
63
47
60
67
55
48
62
65
45
56
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A139350

SEAT

AND SUSPENSION ASSEMBLY - (Continued from Figure 428), Includes Ref: 45-63

1шт.

45

A45582

PLATE

- swivel latch

1шт.

46

A45514

DISC

BEARING - swivel

2шт.

47

A45526

PLATE

ASSEMBLY - bottom swivel

1шт.

48

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8 x 1-1/4" N.C. rd. hd. sq. nk

4шт.

49

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

50

131-6

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8" N.C. hex

4шт.

55

A45522

SLIDE

ASSEMBLY - L.H. side (w/handle)

1шт.

56

A45060

SPRING

- latch

1шт.

57

A45523

SLIDE

ASSEMBLY - R.H. side

1шт.

58

A45060

SPRING

- latch

1шт.

59

A45111

SPACER

- slide (Order with slides)

4шт.

60

A45524

ROD

- latch connecting

1шт.

61

A47172

BOLT

- special, 5/16 x 1"

4шт.

62

92-5

LOCK WASHER,5/16"

4шт.

63

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

65

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

4шт.

66

9635082

NUT,5/16" - 18, Gr 5

4шт.

67

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.
