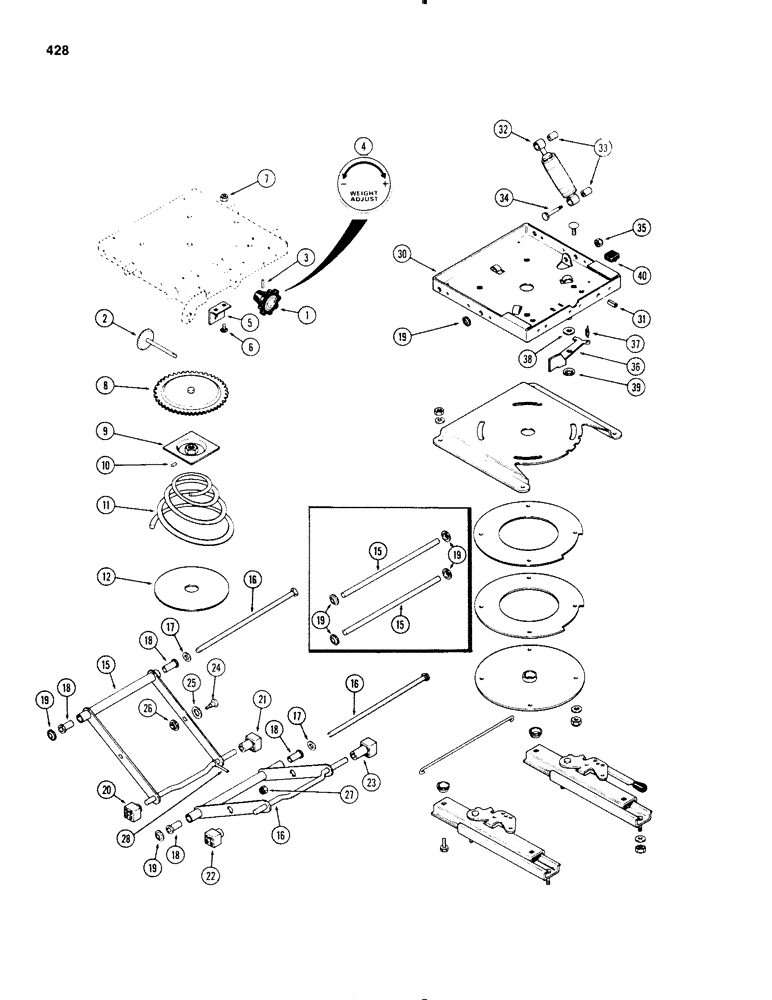

Запчасти Case IH 1270 (428) - SEAT AND SUSPENSION ASSEMBLY, SWIVEL WITH CLOTH COVER, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

A139350

SEAT

AND SUSPENSION ASSEMBLY - cloth w/20 deg. swivel, Includes Ref: 1-40

1шт.

1

A45508

BUTTON

KNOB - weight adjustment

1шт.

2

A45513

GEAR

AND SHAFT ASSEMBLY

1шт.

3

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

4

A45511

DECAL

- weight adjustment

1шт.

5

A45531

BRACKET

- shaft

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4 x 1/2" N.C. rd. hd. sq. neck

2шт.

7

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT - 1/4" N.C. hex. jam

2шт.

8

A45505

GEAR

AND SHAFT ASSEMBLY

1шт.

9

A45504

SPRING WASHER

- spring

1шт.

10

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

11

A45497

SPRING

- conical

1шт.

12

A45530

PAD

- spring

1шт.

13

A45533

TUBE

ARM ASSEMBLY - outer

1шт.

14

A45532

TUBE

ARM ASSEMBLY - inner

1шт.

15

A45506

SHAFT

- bearing (early production) (See Ref.16 and 17)

2шт.

16

A45057

SHAFT

- bearing (Replaces A45506)

2шт.

17

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (Use with A45057)

2шт.

18

A45496

TUBE

- bearing

4шт.

19

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

1шт.

20

A45512

BLOCK

- slider, 1-3/16"

1шт.

21

A45516

BLOCK

- slider, 2-3/16"

1шт.

22

A45515

BLOCK

- slider, 1-9/16"

1шт.

23

A45517

BLOCK

- slider, 2-9/16"

1шт.

24

A45055

BOLT

- 3/8 x 1" N.C. rd. hd. sq. neck (Replaces A45569)

2шт.

25

A45110

WASHER

- spacer (Replaces A45519)

2шт.

26

A45498

BUSHING

BEARING - cross pivot

2шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. jam

2шт.

28

A47070

INDICATOR

- height adjustment

1шт.

30

A45525

BASE

ASSEMBLY - lower, s/swivel

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

- seat

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

34

A45056

STEP BOLT

BOLT - shoulder (Replaces A45502)

1шт.

35

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - 3/8" N.C. hex. nylock

1шт.

36

A45520

LATCH

- swivel

1шт.

37

A45521

SPRING

- latch swivel

1шт.

38

A45519

WASHER

- spacer

1шт.

39

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

1шт.

40

A45054

BUMPER,Neoprene

- seat (Replaces A45509)

2шт.
