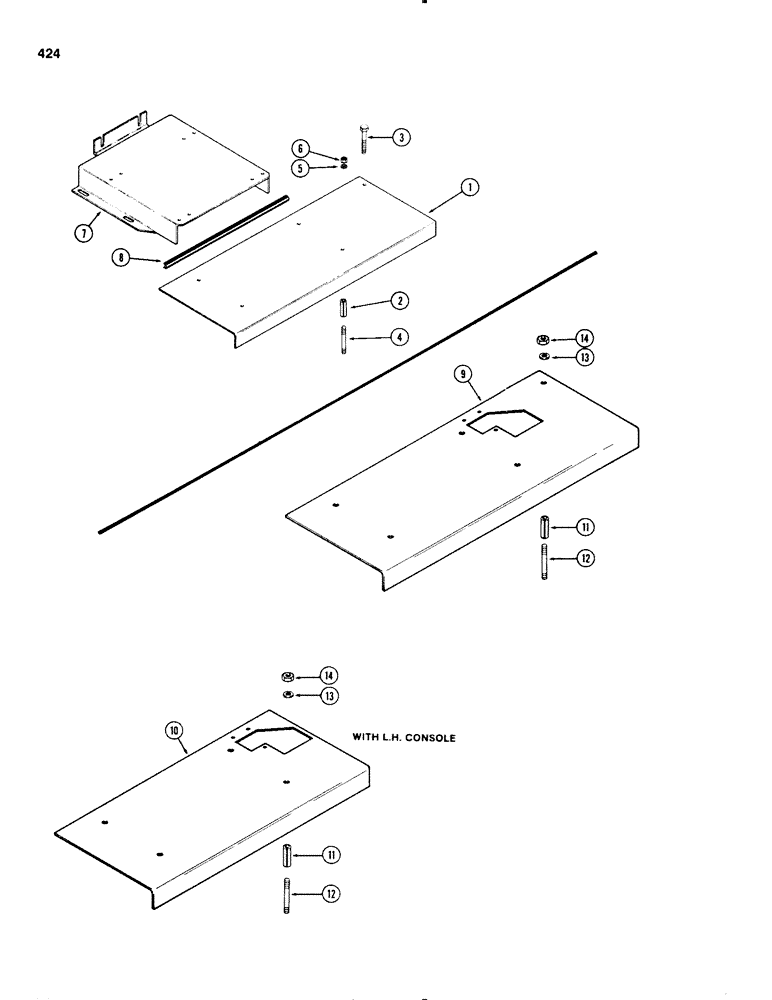

Запчасти Case IH 1270 (424) - SEAT SUPPORT PLATE, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

1

A137209

PLATE

- seat suspension

1шт.

2

A65472

SPACER

- support (13/32" I.D. x 2" high)

5шт.

3

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex. (L.H. rear hole)

1шт.

4

A137836

STUD

- (3/8" N.C. x 4")

4шт.

5

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64")

5шт.

6

131-52

NUT,3/8"-16, GC

NUT - lock, Esna (3/8" N.C. hex.)

5шт.

7

A139801

SUPPORT

ADAPTER -, Serial Range: seat-support

1шт.

8

A64864

GUARD

TRIM - seat adapter edge (Replaces A64865)

1шт.

9

A63647

PLATE

- seat suspension (w/R.H. control console), Serial Range: -8797501

1шт.

10

A63649

PLATE

- seat support (Used w/L.H. control console), Serial Range: -8797501

1шт.

11

A65472

SPACER

- support (13/32" I.D. x 2" high), Serial Range: -8797501

4шт.

12

A137836

STUD

- (3/8" N.C. x 4") (1st used P.I.N. 8755218), Serial Range: -8797501

4шт.

12

A66428

PLATE

STUD - (3/8 x 3-1/2" N.C.) (Order A137836), Serial Range: -8797501

4шт.

A66428

PLATE

STUD - (3/8 x 3-1/2" N.C.) (Order A137836), Serial Range: -8755218

4шт.

13

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64"), Serial Range: -8797501

4шт.

14

131-52

NUT,3/8"-16, GC

NUT - lock, Esna (3/8" N.C. hex.), Serial Range: -8797501

4шт.
