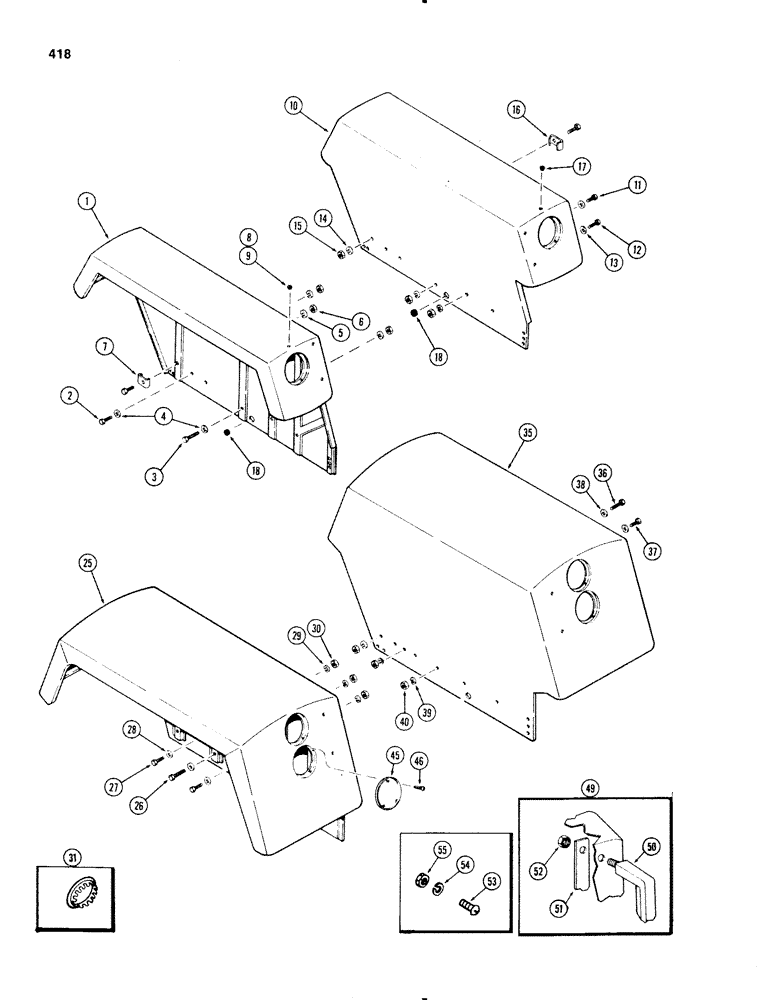

Запчасти Case IH 1270 (418) - FENDERS, 12 INCH (09) - CHASSIS/ATTACHMENTS

1

A64890

FENDER

ASSEMBLY - 12" R.H. (w/o cab)

1шт.

2

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

7шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

7

A59318

BRACKET

- fender side sheet mounting

4шт.

8

353-405

PLUG,Dome, .562" hole, Nylon

- button (9/16" hole)

2шт.

10

A64891

FENDER

ASSEMBLY - 12", L.H. (w/o cab)

1шт.

11

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

3шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

5шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

16

A59318

BRACKET

- fender side sheet mounting

4шт.

17

353-405

PLUG,Dome, .562" hole, Nylon

- 9/16" button

1шт.

18

A59722

GROMMET

- wire harness

2шт.

25

A64892

FENDER

ASSEMBLY - 24", R.H. (w/o cab)

1шт.

26

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Fenders - 24" Hex, 3/8"-16 x 2 1/2", G5

6шт.

27

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Fenders - 24" Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

28

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", fenders - 24"

7шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Fenders - 24" 3/8"

7шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Fenders - 24" 3/8"-16, G5

7шт.

31

353-405

PLUG,Dome, .562" hole, Nylon

- button (9/16" hole), fenders - 24"

1шт.

35

A64893

FENDER

ASSEMBLY - 24", L.H. (w/o cab)

1шт.

36

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Fenders - 24" Hex, 3/8"-16 x 2", G5

2шт.

37

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/4" N.C. hex, fenders - 24"

4шт.

37

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

Fenders - 24" Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

38

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", fenders - 24"

5шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Fenders - 24" 3/8"

5шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Fenders - 24" 3/8"-16, G5

5шт.

45

A66660

PLATE

COVER - cultivator light opening (R.H. & L.H.), fenders - 24"

2шт.

46

187-1050

SCREW

- #10 x 1/2" N.C. type T tap (R.H. & L.H.), fenders - 24"

6шт.

49

A65434

KIT

ATTACHMENT - fender mounting handle (R.H. & L.H.), Includes Ref: 50-52

1шт.

50

A60530

HANDLE

- mounting

1шт.

51

A59338

PLATE

- handle mounting

1шт.

52

230-4216

LOCK NUT,3/8"-16, GA

NUT - (3/8" N.C. whiz lock), handles

2шт.

53

175-467

BOLT,Sl Truss Hd, 3/8" - 16 x 5/8"

- (3/8 x 5/8" N.C. Truss hd. slotted), handles

2шт.

54

92-6

LOCK WASHER,3/8"

handles 3/8"

2шт.

55

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), handles

2шт.
