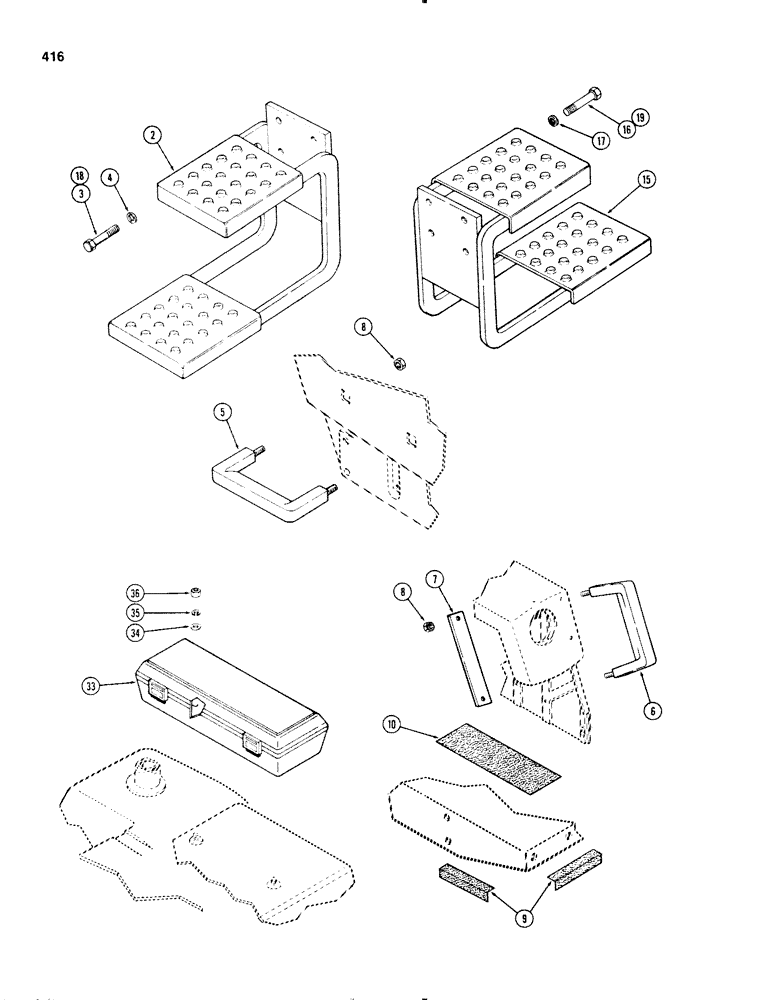

Запчасти Case IH 1270 (416) - STEPS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

A63824

ATTACHMENT - step & handles, R.H. (Mach. Item), Includes Ref: 2-10

1шт.

2

A63825

STEP

ASSEMBLY - R.H.

1шт.

3

113-783

BOLT - 5/8 x 3" N.C. hex. w/Jay Lock

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

A63828

HANDLE

- hood, R.H.

1шт.

6

A60530

HANDLE

- fender, R.H.

1шт.

7

A59338

PLATE

- fender handle

1шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. whiz lock

4шт.

9

A62468

TREAD

- non-slip, 2 x 6"

2шт.

10

A62469

COVER

TREAD - non-slip, 4 x 16"

1шт.

15

A63825

STEP

ASSEMBLY - L.H. (See Note)

1шт.

16

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

113-782

BOLT - (5/8 x 2-1/2" N.C. hex.) (Replaces R.H. step bolts when cab is field installed)

4шт.

19

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Replaces L.H. step bolts when cab is field installed) Hex, 5/8"-11 x 2 1/2", G5

4шт.

33

A66152

BOX

- tool, mounted

1шт.

34

195-104

WASHER,3/8"

- wrought, tool box 3/8"

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Tool box 3/8"

2шт.

36

131-1306

JAM NUT,Jam, 3/8"-16

NUT - lock (3/8" N.C. hex.) (Gripco), tool box

2шт.
