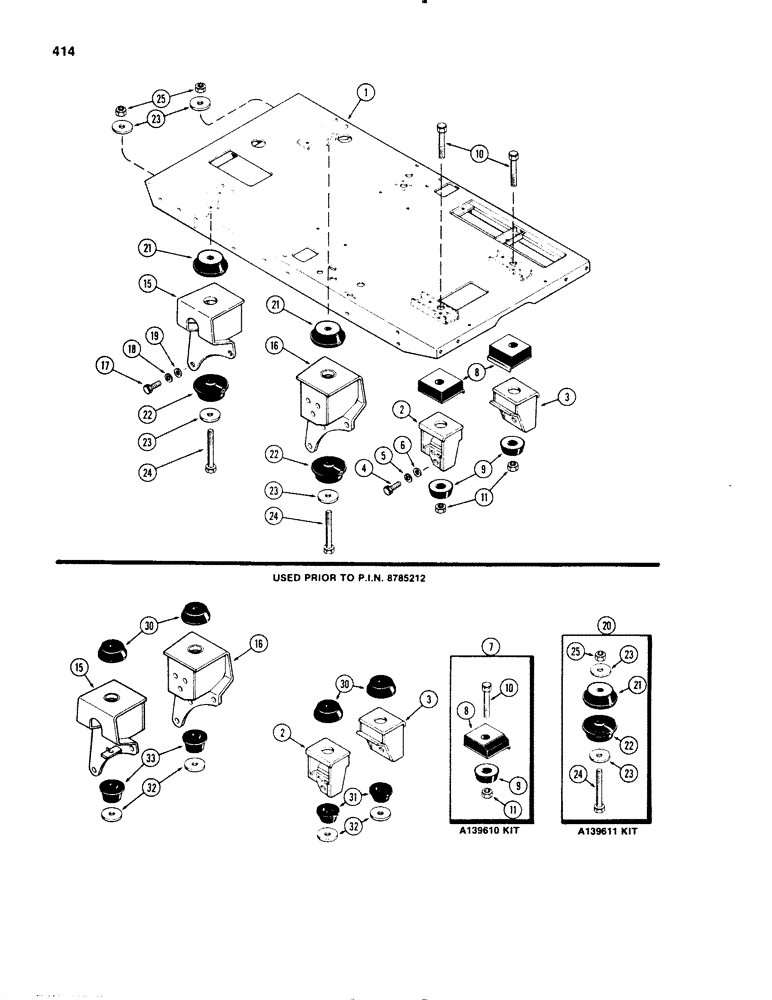

Запчасти Case IH 1270 (414) - PLATFORM MOUNTS, FIRST USED P.I.N. 8785212 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
DECK ASSEMBLY - platform, See Figure: 412
1шт.
2
A63628
MOUNTING PARTS
MOUNT ASSEMBLY - platform, R.H. front
1шт.
3
A63629
MOUNTING PARTS
MOUNT ASSEMBLY - platform, L.H. front
1шт.
4
13-822
BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd
6шт.
5
92-8
LOCK WASHER,1/2"
6шт.
6
95-8
WASHER,1/2"
(9/16 x 1-3/8 x 7/64") 1/2"
6шт.
7
A139610
KIT
- platform front mounts, Includes Ref: 8-11
1шт.
8
NSS
NOT SOLD SEPARAT
MOUNT - compression, upper front (Order Ref. 7)
2шт.
9
NSS
NOT SOLD SEPARAT
MOUNT - rebound, lower front (Order Ref. 7)
2шт.
10
13-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- 5/8 x 3-3/4" N.C. hex
2шт.
11
131-14
LOCK NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
2шт.
15
A65608
BRACKET
MOUNT ASSEMBLY - platform, R.H. rear
1шт.
16
A65609
BRACKET
MOUNT ASSEMBLY - platform, L.H. rear
1шт.
17
13-822
BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd
6шт.
18
92-8
LOCK WASHER,1/2"
6шт.
19
95-8
WASHER,1/2"
(9/16 x 1-3/8 x 7/64") 1/2"
6шт.
20
A139611
RUBBER MOUNTING
KIT - platforms rear mounts, Includes Ref: 21-25
1шт.
21
NSS
NOT SOLD SEPARAT
MOUNT - upper rear (Color code pink) (Order Ref. 20)
2шт.
22
NSS
NOT SOLD SEPARAT
MOUNT - lower rear (Color code green) (Order Ref. 20)
2шт.
23
A59517
WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk
- upper & lower rear mount (21/32 x 2-1/4 x 1/4")
4шт.
24
13-1076
BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5
- 5/8 x 4-3/4" N.C. hex
2шт.
25
131-14
LOCK NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
2шт.
30
A64854
RUBBER MOUNTING
MOUNT - platform, upper, front & rear (3-1/4" O.D.) (Order A139610 & A139611 Kits) to 8785212
4шт.
31
A63638
PAD, RUBBER
MOUNT - platform, lower, front (2-1/2" O.D.) (Order A139610 Kit) to 8785212
2шт.
32
A59517
WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk
- 21/32 x 2-1/4 x 1/4" to 8785212
2шт.
33
A64855
WASHER
MOUNT - platform, lower, rear (3" O.D.) (Order A139611 Kit) to 8785212
2шт.
Выбрано товаров: 26
