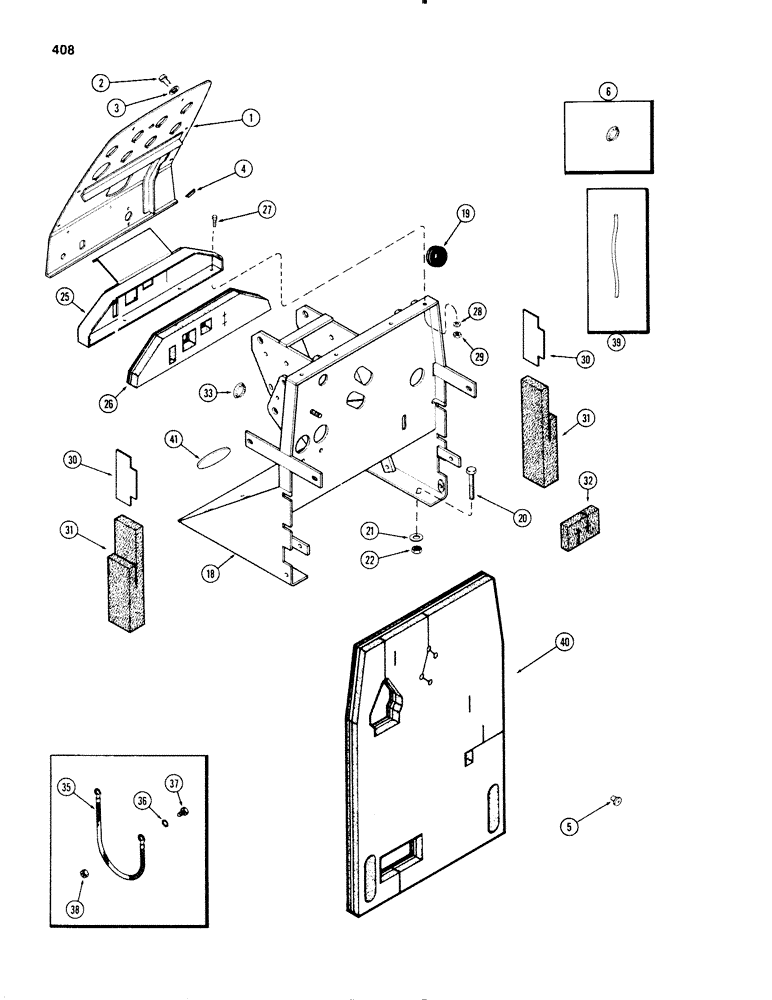

Запчасти Case IH 1270 (408) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

A145842

PANEL

ASSEMBLY - (1st used P.I.N. 8819204) (Replaces A143384 and A66924)

1шт.

1

A143384

PANEL

ASSEMBLY - (w/silk screen decals) (See Note) (Used w/park lock), Serial Range: 8801288-8819204)

1шт.

1

A66925

PANEL

ASSEMBLY - (w/o decals) (See Note) (Used trac. ser. nos. 8797501 to 8801288) (Used w/park lock) (Order A143384)

1шт.

1

A66924

PANEL

ASSEMBLY - instrument (Includes decals) (See note) (Replaces A65994) (Order A145842), Serial Range: -8797501

1шт.

2

A63896

SCREW,Hex, #10 - 32 x 7/8"

- #10 x 7/8" N.F. hex. hd., mach (brass)

6шт.

3

193-93

LOCK WASHER,#10

WASHER - Shakeproof, int #10

6шт.

4

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

6шт.

5

A63897

NUT

- #10 N.F. well (neoprene)

6шт.

6

353411

PLUG - instr. panel (ether start kit)

1шт.

18

A65531

FRAME

FIREWALL ASSEMBLY

1шт.

19

A59719

GROMMET

- firewall, 1-1/8 x 2-1/2 x 1/2"

1шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Firewall Hex, 1/2"-13 x 2", G5

4шт.

21

92-8

LOCK WASHER,1/2"

firewall 1/2"

4шт.

22

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, firewall

4шт.

25

A66374

BAFFLE

- firewall, top

1шт.

26

A143643

FOAM

PAD - firewall top baffle (Replaces A66545)

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Firewall Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Firewall 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

Firewall 1/4"-20, G5

4шт.

30

A66378

SUPPORT

- firewall sides sealing foam

2шт.

31

REF

INSTRUCTION

BAFFLE - foam, firewall bottom, See Figure: 410

2шт.

32

A64965

SEAL

- firewall sealing (See Note)

4шт.

33

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - 1-1/2" button, firewall

4шт.

35

A64704

STRAP

- grounding, firewall

1шт.

36

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Firewall Ext-Int Tooth, 1/2"

2шт.

37

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Firewall Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Firewall

1шт.

39

345-27

BEAD - filler (Use 345-17 sealant), firewall

1шт.

40

A143644

FOAM

PAD - acoustical, firewall (Replaces A66552)

1шт.

41

A63059

COVER

- diff. lock hole (Used w/o diff. lock), firewall

1шт.
