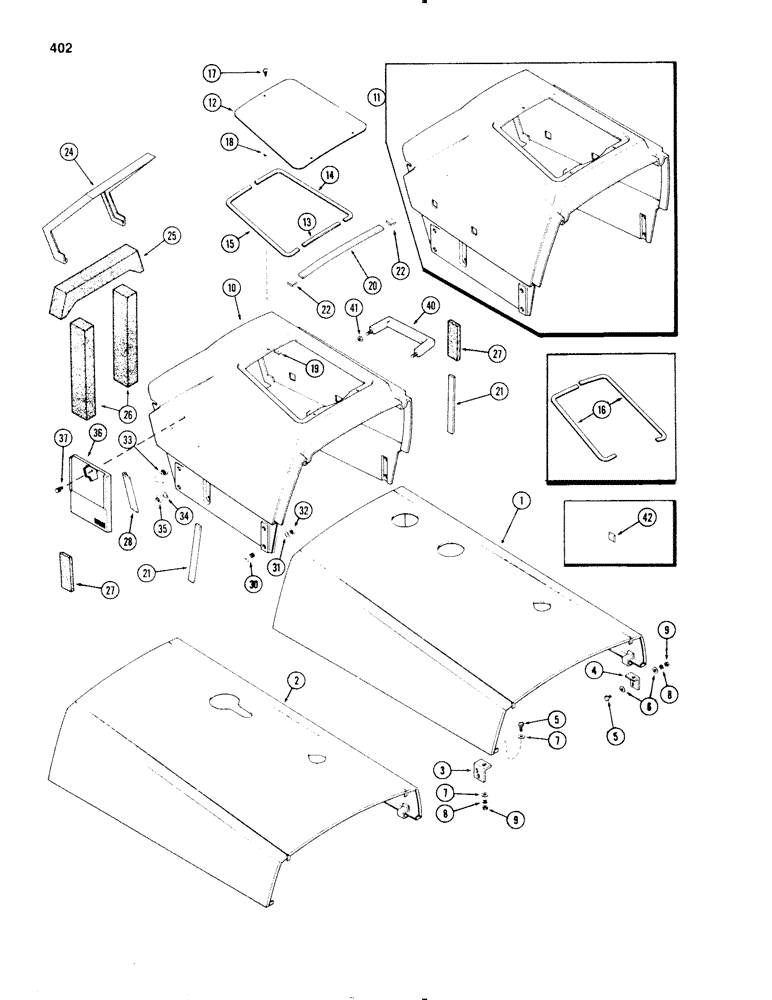

Запчасти Case IH 1270 (402) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A63971

HOOD

ASSEMBLY - front (w/std. air cleaner)

1шт.

2

A139351

HOOD

ASSEMBLY - front (w/aspirated air cleaner)

1шт.

3

A63972

BRACKET

- hood to grille, R.H.

1шт.

4

A63973

BRACKET

- hood to grille, L.H.

1шт.

5

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex

6шт.

6

195-130

WASHER - (3/8 x 7/8 x 5/64")

8шт.

7

195-522

WASHER,5/16"

- (3/8 x 3/4 x 1/16")

4шт.

8

192-45

LOCK WASHER

- lock, 5/16"

6шт.

9

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex

6шт.

10

A141970

COVER

HOOD ASSEMBLY - rear (Used w/manual box)

1шт.

11

A66383

COVER

HOOD ASSEMBLY - rear (Order A141970)

1шт.

12

A59391

COVER

- hood access

1шт.

13

A135680

SEAL

SEAL - cover center (1st used P.I.N. 8753195)

1шт.

14

A135681

SEAL

- cover L.H. (1st used P.I.N. 8753195)

1шт.

15

A135682

SEAL

- cover R.H. (1st used P.I.N. 8753195)

1шт.

16

A59400

SEAL

- cover, (See Note) (Order A135681 and A135682), Serial Range: -8753195

2шт.

17

A137887

NUT

STUD - wing head, rear hood cover (Replaces A61044)

3шт.

18

A61045

RETAINER

- stud, rear hood cover

3шт.

19

A63849

CLIP

RECEPTACLE CLIP - rear hood cover

3шт.

A45349

KIT

- hood seal (48" roll to cut to size), Includes Ref: 20-22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - rear hood, center (Order A45349)

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - rear hood, outer (Order A45349)

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL - rear hood, upper corners (Order A45349)

2шт.

24

A64864

GUARD

MOLDING - rear hood & inst. panel (Replaces A64867)

1шт.

25

REF

INSTRUCTION

FOAM - firewall top baffle, See Figure: 384

1шт.

26

REF

INSTRUCTION

FOAM - sealing, firewall sides, See Figure: 384

2шт.

27

REF

INSTRUCTION

FOAM - rear hood sealing, See Figure: 384

2шт.

28

A64864

GUARD

MOLDING - rear hood & side panel, R.H. (Replaces A64868)

1шт.

30

A63855

SPACER

- rear hood

4шт.

31

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

32

129-107

NUT,5/8"-11, G5

4шт.

33

A63856

SPACER

- rear hood

4шт.

34

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

35

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex., jam

4шт.

36

A141933

BOX

- Operator's Manual

1шт.

37

A143300

FASTENER

- speed clinch

2шт.

40

A63828

HANDLE

- hood, L.H. (w/o cab)

1шт.

41

230-4216

LOCK NUT,3/8"-16, GA

NUT - (3/8" N.C. hex. whiz lock)

2шт.

42

A66659

PLUG

- cover, handle hole

2шт.
