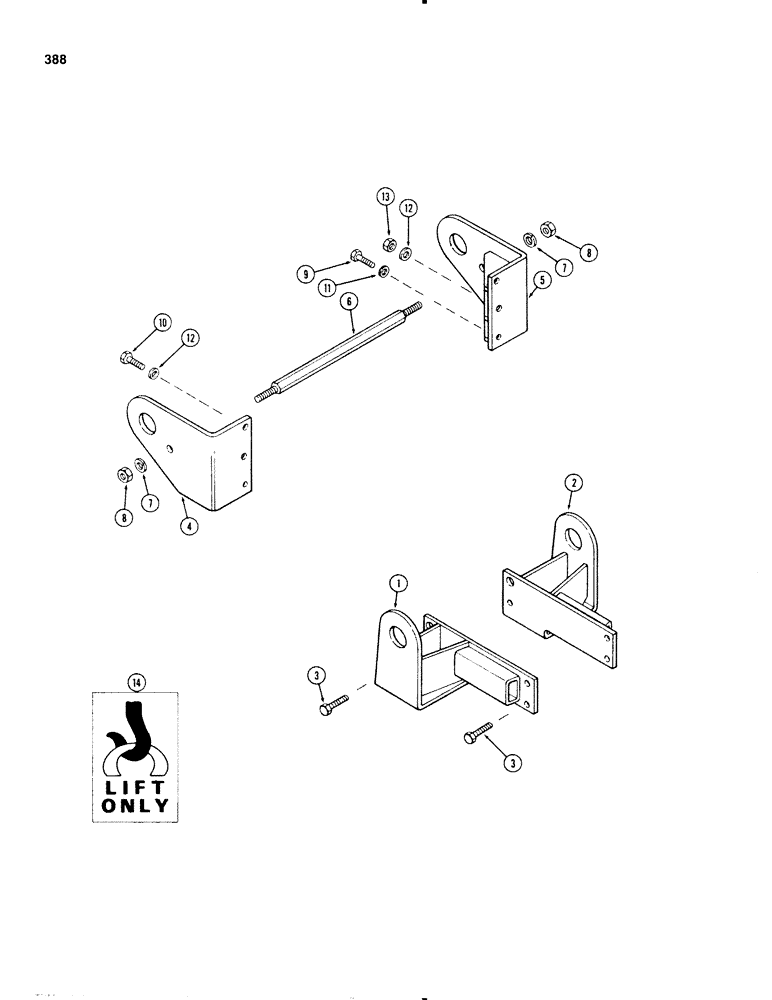

Запчасти Case IH 1270 (388) - FRONT LIFTING EYE (09) - CHASSIS/ATTACHMENTS

1

A143255

BRACKET

LIFT EYE - front, R.H.

1шт.

2

A143258

BRACKET

LIFT EYE - front, L.H.

1шт.

3

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- 3/4 x 3-1/4" N.C. hex

6шт.

4

A143260

BRACKET

LIFT EYE - rear, R.H.

1шт.

5

A143263

BRACKET

LIFT EYE - rear, L.H.

1шт.

6

A141589

BRACKET

BAR - lift eye stabilizer, rear

1шт.

7

192-31

LOCK WASHER,1"

WASHER, LOCK, , Rear lifting eye 1"

2шт.

8

129-110

NUT,1"-8, G5

Rear lifting eye 1"-8, G5

2шт.

9

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- 1/2 x 2-1/2" N.C. hex, rear lifting eye

2шт.

10

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- 5/8 x 2-1/2" N.C. hex, rear lifting eye

2шт.

11

A150672

WASHER

- 33/64 x 7/8 x 7/64" (Replaces A39046), rear lifting eye

2шт.

12

A64303

WASHER

- 41/64 x 1-1/16 x 1/16", rear lifting eye

4шт.

13

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex, rear lifting eye

2шт.

14

321-3578

DECAL

- lift eye, rear

4шт.
