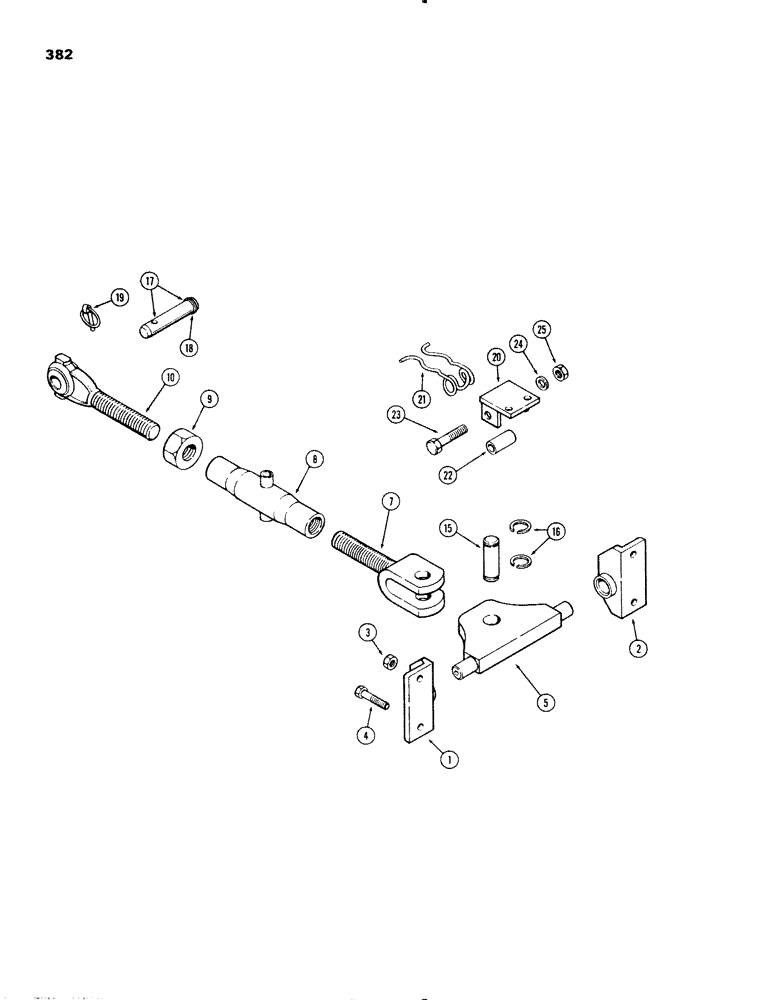

Запчасти Case IH 1270 (382) - THREE POINT HITCH, TURNBUCKLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

A66218

BRACKET

ANGLE - upper link bracket, R.H.

1шт.

2

A66219

BRACKET

ANGLE - upper link bracket, L.H.

1шт.

3

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex., bracket to stud

2шт.

4

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- 5/8 x 2-1/2" N.C. hex

2шт.

5

A66217

PLATE

- upper link bracket

1шт.

7

A63523

CLEVIS

- upper link

1шт.

8

A63527

TURNBUCKLE

- upper link

1шт.

9

25-1124

NUT,1 1/2"-12, G5

- 1-1/2" N.F. hex

1шт.

10

A137557

BALL

- upper link end (Replaces A63526)

1шт.

15

A63529

PIN

-, Serial Range: link-plate

1шт.

16

A28253

RING

- snap, link to plate pin

2шт.

17

A143993

PIN,31.6mm OD x 161.54mm L

ASSEMBLY - link to implement (Replaces A63514), Includes Ref: 18

1шт.

18

17406

RING

- snap

1шт.

19

A64204

PIN

- klik, upper link pin & lower, Serial Range: point-implement

1шт.

20

A64393

BRACKET

- upper link storage

1шт.

21

A61684

CLIP

- turnbuckle transport

1шт.

22

A64392

SPACER

- upper link clip

1шт.

23

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

24

195-105

WASHER,7/16"

- lock, 1/2"

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
